RSB6.8STE61
| Manufacturer | |
| Description | ESD Suppressor 2-Pin EMD ESD PROTECTION DIODE 6,8V TVS DIODE 3.5VWM SOD523 TVS Diode Bi-Directional RSB6.8STE61, 10W, SOD523 2-Pin TVS Diode Arrays TVS ARRAY2 ELEMENTS TVS ARRAY TVS,RSB6.8STE61 ROHM 双向 TVS 二极管, 10W, 2针 SOD-523封装 TVS Diodes / ESD Suppressors TVS ARRAY2 ELEMENTS |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | RSB6.8STE61CT | Product Category | TVS Diode Arrays |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85354000 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Channels | 2 Channels | Capacitance | 30 pF |
| Voltage Rating | 7.82 V | Voltage - Supply | 3.5V |
| Number of Elements | 1 | Power - Peak Pulse | 10W |
| Capacitance @ Vr, F | :30pF | Diode Configuration | :SOD-523 |
| Voltage - Breakdown | 6.8V | Voltage - Isolation | :6.8V |
| Power Line Protection | No | Bidirectional Channels | 1 |
| Power Dissipation (Max) | :150mW | Current - Reverse Leakage @ Vr | 0.5 uA |
Mechanical
| Weight | 0.00003 | Packaging | Tape & Reel (TR) |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :2 |
| Package / Case | SOD523 | Material Finish | :MSL 1 - Unlimited |

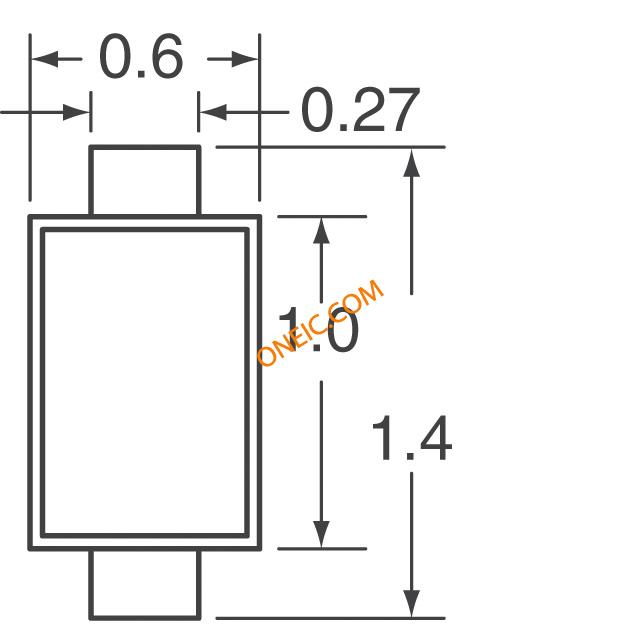

| Size / Dimension | 0.8 mm W x 1.2 mm L x 0.6 mm H | Termination Style | SMD/SMT |
| Number of Positions | 2 | Supplier Device Package | EMD2 |
Product Info
| Type | Zener | Series | RSB6.8S |

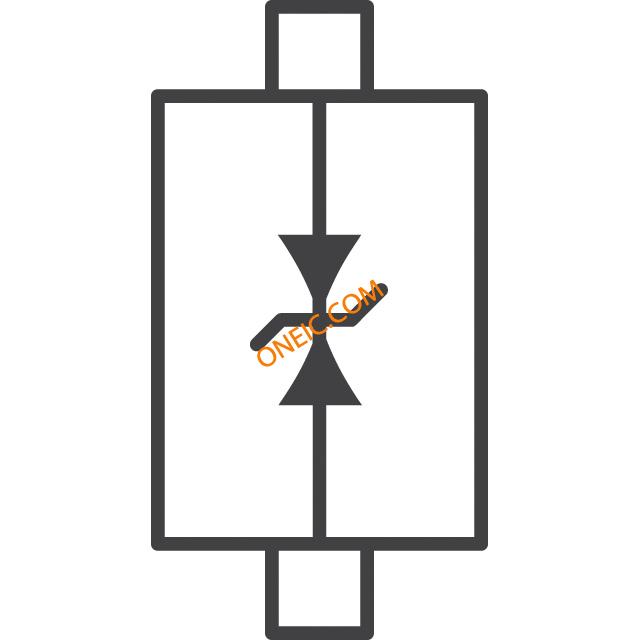

| Polarity | Bidirectional | Matchcode | RSB6.8S |
| Diode Type | :ESD Protection | Applications | General Purpose |
| Port Direction | Bi-Directional | Standard Leadtime | 14 weeks |
Environmental
| Operating Temperature | -55 °C | ||
Documents & Media
PDF Document
