RSB18F2T106
| Manufacturer | |
| Description | TVS Diode Arrays DI; BIDIRECTIONAL ZENER TVS DIODE 13VWM UMD3 Diode Zener Dual 18V 10% 200mW 3-Pin UMD ROHM 2路 ESD 保护二极管, 18V 200 mW, 3针 SOT-323 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | RSB18F2T106TR | Standard Package | 3,000 |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Capacitance | 30 pF | Current - Surge | 0.1 uA |
| Voltage - Supply | 13V | Voltage - Working | 19.8 V |
| Number of Elements | 2 | Power - Peak Pulse | 200 mW |
| Capacitance @ Vr, F | 30 pF | LED Forward Current | 1mA |
| Voltage - Breakdown | 16.2V | Voltage - Off State | 13V |
| Current Rating (Max) | 0.1µA | Power Line Protection | No |
| Bidirectional Channels | 2 | Voltage - Supply (Min) | 19.8 V |
| Power - Average Forward | 200 mW | Power Dissipation (Max) | 200 mW |
Mechanical

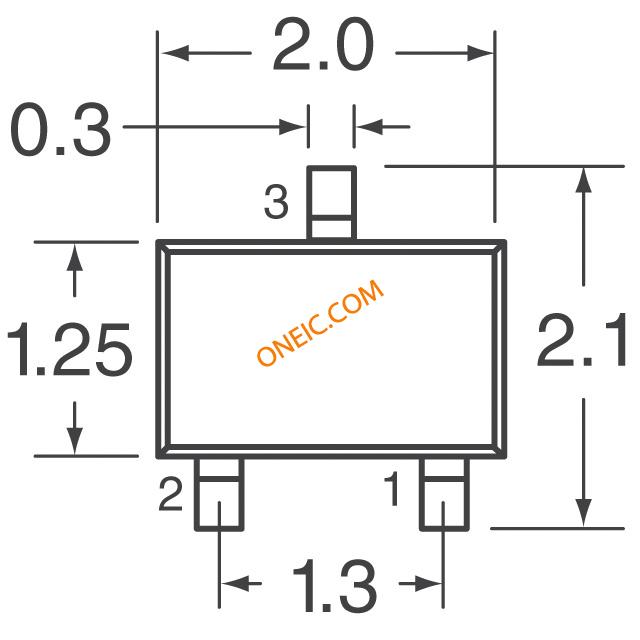

| Width | 1.25mm | Height | 0.9mm |
| Length | 2mm | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Number of Pins | 3 |
| Package / Case | SC-70, SOT-323 | Package Quantity | SOT-323 |
| Size / Dimension | 2 mm W x 2.1 mm L x 0.9 mm H | Termination Style | SMD/SMT |
| Supplier Device Package | UMD3 | ||
Product Info
| Type | Zener | Series | RSB18F2 |
| Function | Y | Polarity | Bidirectional |
| Diode Type | 双向 | Applications | General Purpose |
| Manufacturer | ROHM Semiconductor | ||
Environmental
| Operating Temperature | +150 °C | ||
