RB530XNTR
| Manufacturer | |
| Description | Schottky Diodes & Rectifiers SCHOTTKY 30V 100MA Schottky Barrier Diodes DIODE SCHOTTKY 30V 100MA UMD6 Diode Small Signal Schottky 30V 0.1A 6-Pin UMD T/R |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Product | Schottky Diodes |
| Unit Pack | 3000 | Other Names | RB530XNCT |
| Product Category | Schottky Diodes & Rectifiers | Standard Package | 3,000 |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Speed | Small Signal = | Current - Test | 1µA @ 10V |
| Voltage - Supply | 0.53 V | Diode Configuration | 3 Independent |
| Voltage - Input (Min) | 530mV @ 100mA | Voltage Regulation - Load | 30 V |
| Current - Peak Pulse (8/20us) | 1 A | Current - Reverse Leakage @ Vr | 1 uA |
| Current - DC Forward (If) (Max) | 0.1 A | Voltage - DC Reverse (Vr) (Max) | 30V |
| Current - Continuous Drain (Id) @ 25degC | 0.1 A | Current - Average Rectified (Io) (per Diode) | 100mA |

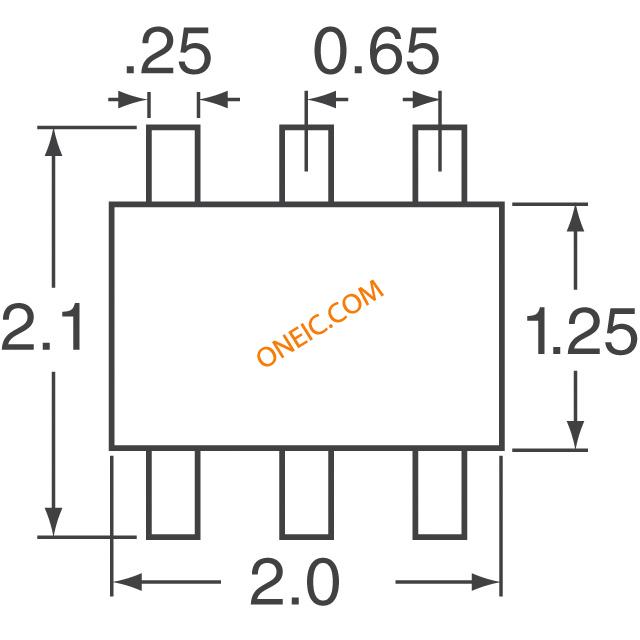

Mechanical
| Height | 0.9 mm | Length | 2 mm |
| Packaging | Reel | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | SC-88 (SOT-363) |
| Termination Style | Solder Pad | Supplier Device Package | UMD6 |
Product Info
| Type | Small Signal Schottky Diode | Series | RB530XN |
| DELETED | Compliant | Diode Type | Schottky |
| Technology | Si | Manufacturer | ROHM Semiconductor |
| Configuration | Triple Parallel | ||
Environmental
| Operating Temperature | + 125 C | ||
