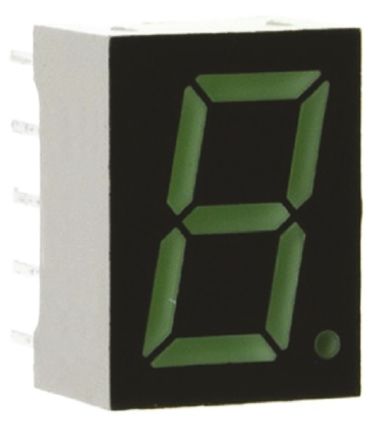

LA-601ML
| Manufacturer | |
| Description | LED Displays & Accessories LED #1 DIGIT DISP .6 CC GREEN DISPLAY 7SEG 14.6MM 1DGT GRN CC ROHM 7段 共阴 绿色 LED 数码管, 16 mcd, 右侧小数点, 14.6mm高字符 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 60 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| LED | 绿色 | Wavelength | 563 nm |
| Display Type | 7 Segment | Current - Output | 10mA |
| Voltage - Supply | 2.1 V | Wavelength - Peak | 563nm |
| Millicandela Rating | 22mcd | Power Dissipation (Max) | 60mW |
| Current - Average Rectified (Io) | 20 mA | Common Mode Transient Immunity (Min) | 阴极 |
Mechanical
| Size | 19 x 12.5 x 8mm | Color | Green |
| Packaging | Bulk | Common Pin | Common Cathode |
| Housing Color | 黑色 | Mounting Type | 通孔安装 |
| Package / Case | 10-DIP (0.400", 10.16mm) | Depth - Overall | 8mm |
| Size / Dimension | 0.748" H x 0.492" W x 0.315" D (19.00mm x 12.50mm x 8.00mm) | Illumination Color | Green |
| Number of Positions | 1 | Width - Outer Edges | 12.5mm |
| Height - Seated (Max) | 19mm | ||
Product Info
| Viewing Area | 12.5 mm X 19 mm | Character Size | 14.6 mm |
| Number of Bands | 右侧 | Digit/Alpha Size | 0.57" (14.60mm) |
| Number of Segments | 7 | Digits or Characters | 1 |
| Number of Characters | 1 | ||
Environmental
| Operating Temperature | + 75 C | Luminous Flux @ Current/Temperature | 22 mcd |
