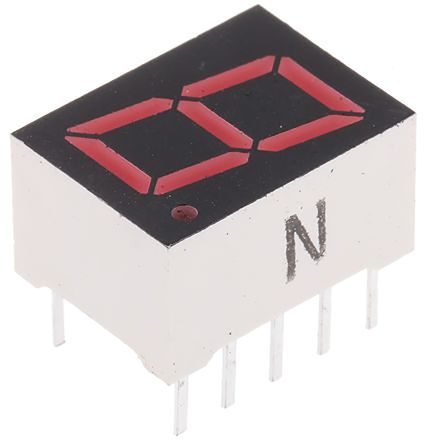

LA-401VN
| Manufacturer | |
| Description | LED Displays & Accessories LED #1 DIGIT DISP .4 CC RED DISPLAY 7SEG 10.16MM 1DGT RED CC Red 7-segment LED, LA-401VN 0.4in 0.4INLEDDISPREDCC ROHM LA-401 D/N 系列 数字 共阴 红色 LED 显示器, 16 mcd, 右侧小数点, 10.16mm高字符 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 120 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| LED | 红色 | Wavelength | 650 nm |
| Display Type | 7 Segment | Current - Output | 10mA |
| Voltage - Supply | 2 V | Wavelength - Peak | 650nm |
| LED Forward Current | 15mA | Millicandela Rating | 90mcd |
| Current Rating (Max) | 10mA | Power Dissipation (Max) | 40mW |
| Current - Average Rectified (Io) | 60 mA | MSCP (Mean Spherical Candle Power) | 90mcd |
| Common Mode Transient Immunity (Min) | 阴极 | ||
Mechanical
| Size | 0.512" H x 0.378" W x 0.276" D (13.00mm x 9.60mm x 7.00mm) | Color | Red |
| Depth | 7mm | Width | 9.6mm |
| LED Color | Red | Packaging | Bulk |
| Common Pin | Common Cathode | Height (Max) | 13mm |
| 1st Connector | Common Cathode | Housing Color | 黑色 |
| Mounting Type | PCB Through Hole | Package / Case | 10-DIP (0.300", 7.62mm) |
| Depth - Overall | 7mm | Size / Dimension | 0.512" H x 0.378" W x 0.276" D (13.00mm x 9.60mm x 7.00mm) |
| Color - Background | Black | Illumination Color | Red |
| Number of Positions | 1 | Width - Outer Edges | 9.6mm |
| Dimensions - Overall | 13 x 9.6 x 7mm | Height - Seated (Max) | 13mm |
Product Info
| Series | LA-401 D/N | Viewing Area | 9.6 mm X 13 mm |
| Character Size | 10.16 mm | Number of Bands | 右侧 |
| Digit/Alpha Size | 0.40" (10.16mm) | Number of Segments | 7 |
| Digits or Characters | 1 | Number of Characters | 1 |
| Other Specifications | Left Side | ||
Environmental
| Operating Temperature | + 75 C | Luminous Flux @ Current/Temperature | 16 mcd |
