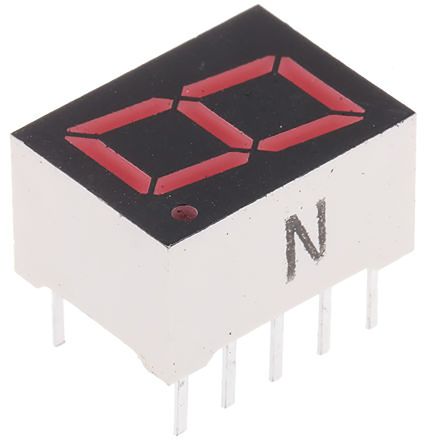

LA-401VD
| Manufacturer | |
| Description | LED Displays & Accessories LED #1 DIGIT DISP .4 CA RED DISPLAY 7SEG 10.16MM 1DGT RED CA Red 7-segment LED, LA-401VD 0.4in 0.4INLEDDISPREDCA ROHM LA-401 D/N 系列 数字 共阳 红色 LED 显示器, 16 mcd, 右侧小数点, 10.16mm高字符 7-SEG.DISPL.RED 1DIG 10,16,C.A. |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 120 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| LED | 红色 | Wavelength | 650 nm |
| Display Type | 7 Segment | Current - Output | 10mA |
| Voltage - Supply | 2 V | Wavelength - Peak | 650nm |
| LED Forward Current | 15mA | Millicandela Rating | 90mcd |
| Current Rating (Max) | 10mA | Power Dissipation (Max) | 40mW |
| Current - Average Rectified (Io) | 60 mA | Current - LED Trigger (Ift) (Max) | 15 mA |
| MSCP (Mean Spherical Candle Power) | 90mcd | Common Mode Transient Immunity (Min) | 阳极 |
Mechanical
| Size | 0.512" H x 0.378" W x 0.276" D (13.00mm x 9.60mm x 7.00mm) | Color | Red |
| Depth | 7mm | Width | 9.6mm |
| LED Color | Red | Packaging | Bulk |
| Common Pin | Common Anode | Height (Max) | 13mm |
| 1st Connector | Common Anode | Housing Color | 黑色 |
| Mounting Type | PCB Through Hole | Package / Case | 10-DIP (0.300", 7.62mm) |
| Depth - Overall | 7mm | Insulation Color | BLACK |
| Size / Dimension | 0.512" H x 0.378" W x 0.276" D (13.00mm x 9.60mm x 7.00mm) | Color - Background | Black |
| Illumination Color | Red | Number of Positions | 1 |
| Width - Outer Edges | 9.6mm | Dimensions - Overall | 13 x 9.6 x 7mm |
| Height - Seated (Max) | 13mm | ||
Product Info
| Series | LA-401 D/N | Circuit Type | C.A. |
| Viewing Area | 9.6 mm X 13 mm | Character Size | 10.16 mm |
| Number of Bands | 右侧 | Digit/Alpha Size | 0.40" (10.16mm) |
| Number of Segments | 7 | Digits or Characters | 1 |
| Number of Characters | 1 | Other Specifications | Left Side |
Environmental
| Operating Temperature | + 75 C | Luminous Flux @ Current/Temperature | 16 mcd |
