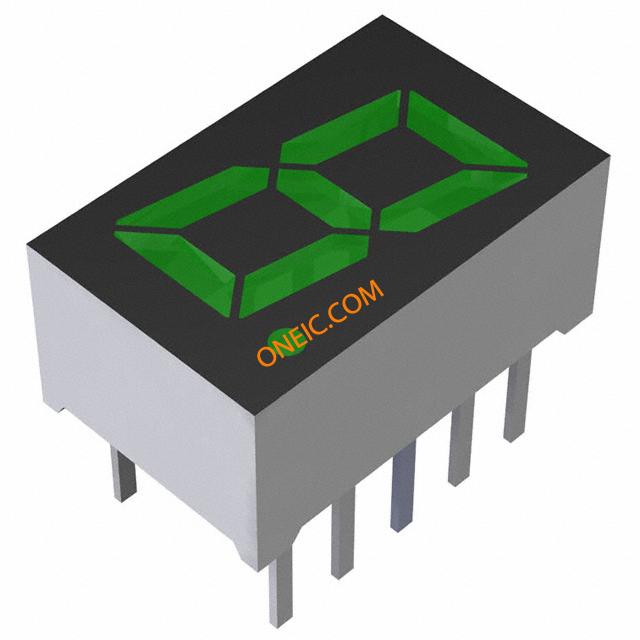

LA-301ML
| Manufacturer | |
| Description | LED Displays & Accessories LED #1 DIGIT DISP .3 CC GREEN DISPLAY 7-SEG 8MM 1DIGIT GRN CC Displays Module 1DIGIT 8LED Green CC 10-Pin DIP ROHM LA-301 B/L 系列 数字 共阴 绿色 LED 显示器, 10 mcd, 右侧小数点, 8mm高字符 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 160 | ||
Compliance
| RoHS | RoHS Compliant | Rad Hardened | No |
Electrical
| LED | 绿色 | Wavelength | 563 nm |
| Display Type | 7 Segment | Power - Rated | 60 W |
| Current - Output | 10mA | Voltage - Supply | 2.1 V |
| Wavelength - Peak | 563nm | Number of Elements | 8 |
| Current - Trip (It) | 10 mA | LED Forward Current | 20 mA |
| LED Forward Voltage | 2.8 V | Millicandela Rating | 10mcd |
| Current Rating (Max) | 10mA | Power Dissipation (Max) | 60mW |
| Current - Average Rectified (Io) | 20 mA | MSCP (Mean Spherical Candle Power) | 10mcd |
| Voltage - Gate Trigger (Vgt) (Max) | 5 V | Common Mode Transient Immunity (Min) | 阴极 |
Mechanical
| Size | 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) | Color | Green |
| Depth | 7 mm | Height | 5 mm |
| Length | 4 mm | Packaging | Bulk |
| Common Pin | Common Cathode | Light Color | Green |
| 1st Connector | Common Cathode | Housing Color | 黑色 |
| Mounting Type | Through Hole | Package / Case | 10-DIP (0.209", 5.30mm) |
| Package Cooled | DIP | Depth - Overall | 5mm |
| Height (Inches) | 8 mm | Length - Overall | 11 mm |
| Size / Dimension | 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) | Illumination Color | Green |
| Number of Positions | 10 | Thickness - Overall | 5 mm |
| Width - Outer Edges | 7mm | Height - Seated (Max) | 11mm |
Product Info
| Type | Module | Series | LA-301 B/L |
| DELETED | Compliant | Viewing Area | 7 mm X 11 mm |
| Configuration | Common Cathode | Character Size | 8 mm |
| Display Format | Numeric | Number of Bands | 右侧 |
| Digit/Alpha Size | 0.31" (8.00mm) | Number of Segments | 7 |
| Digits or Characters | 1 | Number of Characters | 1 |
Environmental
| Operating Temperature | + 75 C | Luminous Flux @ Current/Temperature | 563 mcd |
Documents & Media
PDF Document
