GDZT2R6.2
| Manufacturer | |
| Description | Zener Diodes 5.86 to 6.53V; 5mA 100mW Zener Diode DIODE ZENER 6.2V 100MW GMD2 ROHM 单路 齐纳二极管, 6.2V 5% 100 mW, 2针 GMD2 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 8000 | Unit Pack | 8000 |
| Other Names | GDZT2R6.2CT | Product Category | Zener Diodes |
| Standard Package | 8,000 | Factory Pack Quantity | 8000 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Tolerance | ±5% | Power - Max | 100mW |
| Power - Rated | 100 mW | Current - Test | 1µA @ 3V |
| Current - Output | 5 mA | Voltage - Supply | 5.615 V |
| Number of Elements | 1 | Current Rating (Max) | 1µA |
| Power - Average Forward | 100 mW | Power Dissipation (Max) | 100 mW |
| Voltage - Zener (Nom) (Vz) | 6.2V | Current - Reverse (Irr) (Max) | 1µA @ 3V |
| Current - Reverse Leakage @ Vr | 1 uA | ||
Mechanical

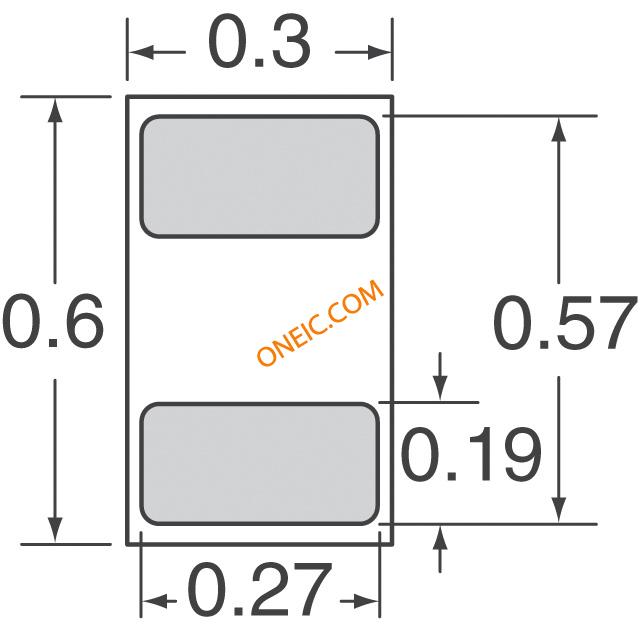

| Width | 0.3mm | Height | 0.3mm |
| Length | 0.6mm | Packaging | Reel |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 2 | Package / Case | GMD-2 |
| Package Quantity | GMD2 | Size / Dimension | 0.6 x 0.3 x 0.3mm |
| Supplier Device Package | GMD2 | ||
Product Info
| Type | Voltage Regulator | Series | GDZ6.2 |
| Function | Y | Diode Type | 稳压器 |
| Manufacturer | ROHM Semiconductor | Configuration | Single |
| Output Configuration | Surface Mount | ||
Environmental
| Operating Temperature | + 125 C | ||
Documents & Media
PDF Document
