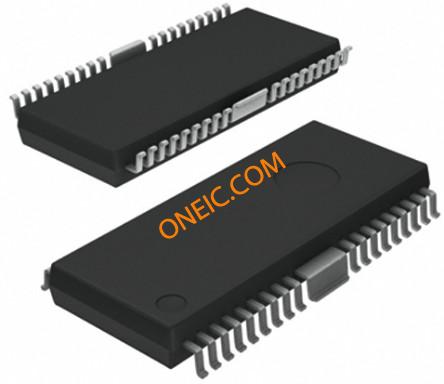

BD6389FM-E2
| Manufacturer | |
| Description | Motor / Motion / Ignition Controllers & Drivers STEP MOTOR DRIVER 10-28V 2.2A StepMotDr 2.2A 36V HSOP-M36 SMD IC MOTOR DRIVER PAR 36-HSOP BD6389FM-E2, Stepper Motor Driver, 10 to 28V, 38-Pin HSOP |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1500 | Product | Stepper Motor Controllers / Drivers |
| Unit Pack | 1500 | Other Names | BD6389FM-E2TR |
| Product Category | Motor / Motion / Ignition Controllers & Drivers | Standard Package | 1,500 |
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Interface | Parallel | Voltage - Load | 10 V ~ 28 V |
| Voltage Rating | 10 V | Current - Output | 4.5 mA |
| Voltage - Supply | 10 V to 28 V | Voltage - Supply (Max) | 2 V |
| Voltage - Supply (Min) | 28 V | ||
Mechanical
| Width | 7.5mm | Height | 2.2mm |
| Length | 18.5mm | Packaging | Reel |
| Mounting Type | SMD | Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-B40 | Package Cooled | HSOP |
| Size / Dimension | 18.5 x 7.5 x 2.2mm | Number of Positions | 38 |
| Supplier Device Package | 36-HSOP | ||
Product Info
| Type | Bipolar Stepping Motor Driver | Function | Driver - Fully Integrated, Control and Power Stage |
| Matchcode | BD6389FM-E2 | Applications | General Purpose |
| Standard Leadtime | 16 weeks | Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar | Output Configuration | Full H-Bridge, (2) Dual |
| Application Specifics | Stepping Motor Driver | ||
Environmental
| Operating Temperature | - 25 C to + 75 C | ||
