BAW56T116
| Manufacturer | |
| Description | Diodes - General Purpose, Power, Switching SWITCH HI SPEED 85V DIODE ARRAY 70V 215MA SSD3 DUAL, DIODE, ARRAY, 3SOT23 SI-DOUBLEDIODE 0,215A 70V SOT23 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Diodes | Other Names | BAW56T116TR |
| Product Category | Diodes - General Purpose, Power, Switching | Standard Package | 3,000 |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85412100 |
Electrical
| Speed | Fast Recovery = 200mA (Io) | Current - Test | 1µA @ 75V |
| Current - Surge | :4A | Voltage - Supply | 1.25 V |
| Current - Output 1 | :150mA | Capacitance @ Vr, F | 2 pF |
| Diode Configuration | 1 Pair Common Anode | Voltage - Input (Min) | 1.25V @ 150mA |
| Power Dissipation (Max) | 225 mW | Voltage Regulation - Load | 85 V |
| Reverse Recovery Time (trr) | 4 ns | Current - Peak Pulse (8/20us) | 4 A |
| Current - Reverse Leakage @ Vr | 1 uA | Voltage - DC Reverse (Vr) (Max) | 70V |
| Voltage - Reverse Standoff (Typ) | :85V | Current - LED Trigger (Ift) (Max) | :215mA |
| Current - Continuous Drain (Id) @ 25degC | 450 mA | Current - Average Rectified (Io) (per Diode) | 215mA |
Mechanical
| Weight | 0.000033 | Packaging | Reel |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :3 |

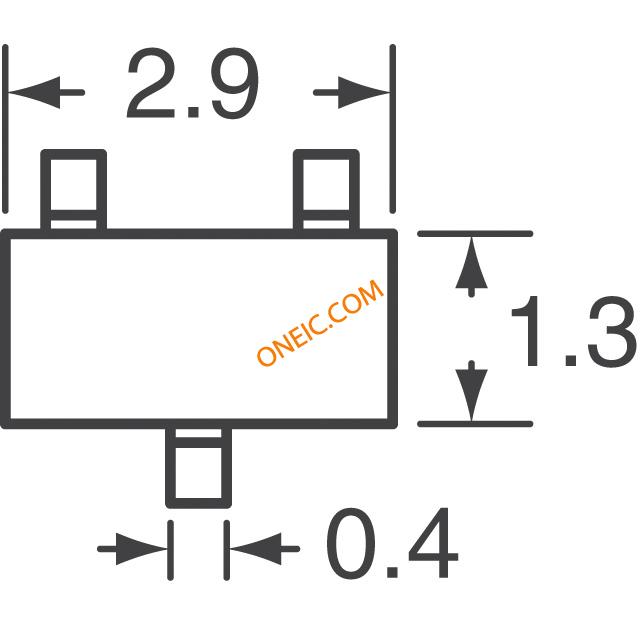

| Package / Case | SOT-23 | Material Finish | :MSL 1 - Unlimited |
| Supplier Device Package | SSD3 | ||
Product Info
| Diode Type | Standard | Configuration | Dual Common Anode |
| Utilized IC / Part | :RA1 | ||
Environmental
| Operating Temperature | + 150 C | Operating Temperature - Junction | :150°C |
