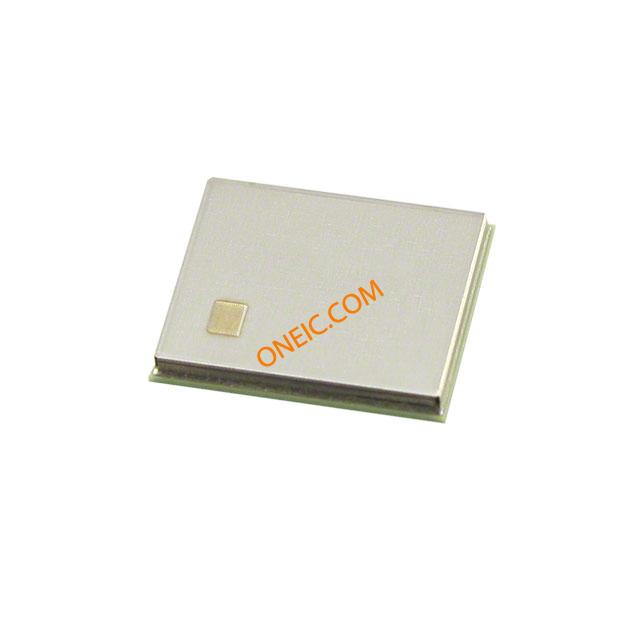

WLS1273L
| Manufacturer | |
| Description | Wireless Module WiFi / 802.11 Modules 2.4 & 5.8GHz WiFi Chipset TI WL1273 RF MODULE BT V4.0 WLAN 5.8GHZ |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 583-1191-2 | Standard Package | Tape & Reel |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Data Rate | 1 Mbps to 65 Mbps, 1 Mbps to 3 Mbps | Frequency | 2.4GHz |
| Interface | SDIO, UART | Power - Max | 8 dBm, 18 dBm |
| Sensitivity | -90dBm | Data Interface | PCB, Surface Mount |
| Power - Output | 8.5dBm | Data Rate (Max) | 3Mbps |
| Current - Supply | 35 mA, 100 mA | Voltage - Supply | 3 V to 4.2 V |
| Current - Output 1 | 180mA | Current - Receiving | 100mA |
| Current - Transmitting | 180mA | Current - Supply (Main IC) | 35 mA, 265 mA |
| Frequency Bands (Low / High) | 2.4 GHz, 5.8 GHz | ||
Mechanical
| Packaging | Cut Tape | Connector Type | PCB, Surface Mount |
| Package / Case | Module | Size / Dimension | 11 mm x 9 mm x 1.4 mm |
| Antenna Connector | Integrated | ||
Product Info
| Protocol | 802.11 a//b/g/n, Bluetooth | Applications | General Purpose |
| Modulation or Protocol | Bluetooth Low Energy, v4.0 | ||
Environmental
| Operating Temperature | -20 to 70 °C | ||
Documents & Media
PDF Document
