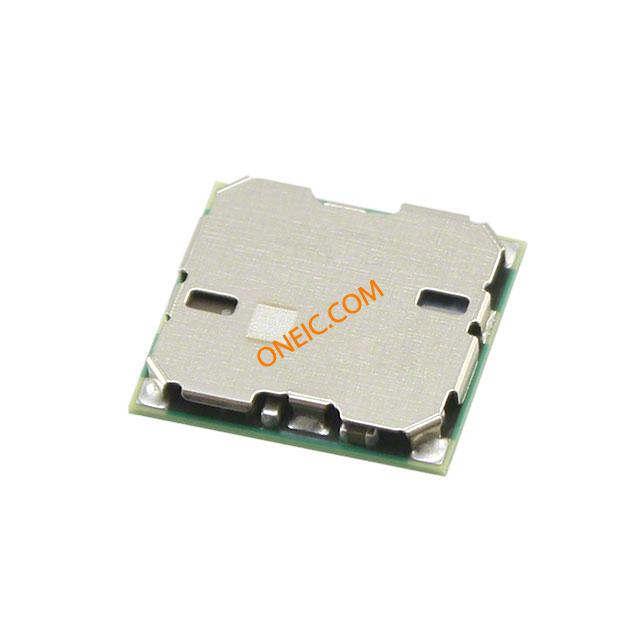

WLS1271L
| Manufacturer | |
| Description | WiFi / 802.11 Modules 2.4GHz WiFi Chipset TI WL1271 Bluetooth IC WLAN BLUETOOTH ARM MODULE |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 583-1190-2 | Standard Package | 1,000 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Data Rate | 1 Mbps to 65 Mbps, 1 Mbps to 3 Mbps | Frequency | 2.4GHz |
| Interface | SDIO, UART | Power - Max | 8 dBm, 18 dBm |
| Sensitivity | -90dBm | Data Interface | PCB, Surface Mount |
| Power - Output | 18dBm | Data Rate (Max) | 65Mbps |
| Current - Supply | 35 mA, 100 mA | Voltage - Supply | 3 V to 4.2 V |
| Current - Receiving | 100mA | Current - Transmitting | 180mA |
| Current - Supply (Main IC) | 35 mA, 250 mA | Frequency Bands (Low / High) | 2.4 GHz |
Mechanical
| Packaging | Cut Tape | Package / Case | Module |
| Size / Dimension | 11 mm x 9 mm x 1.4 mm | Antenna Connector | Integrated |
Product Info
| Protocol | 802.11 b/g/n, Bluetooth | Applications | General Purpose |
| Modulation or Protocol | 802.11 b/g/n, Bluetooth | ||
Environmental
| Operating Temperature | + 85 C | ||
