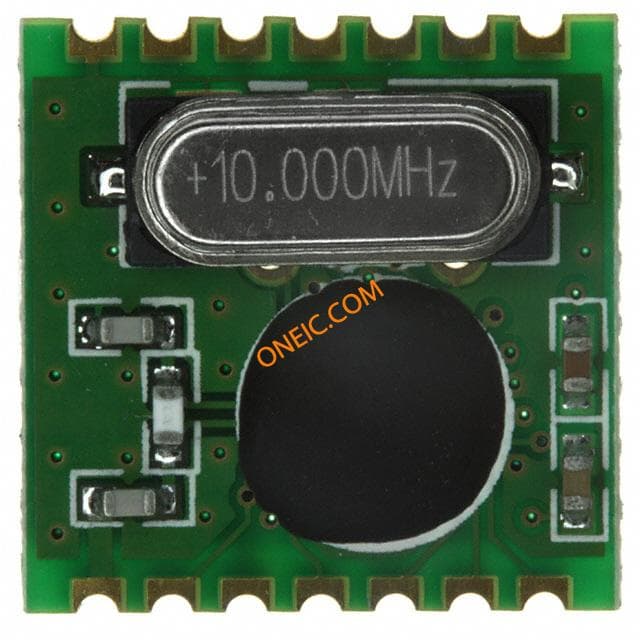

ALPHA-TX433S
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | ALPHATX433S | Standard Package | 1 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | ||
Electrical
| Frequency | 433MHz | Modulation | FM |
| Power - Max | 7dBm | Sensitivity | :-109dBm |
| Data Interface | Solder Pad | Power - Output | 7dbm |
| Data Rate (Max) | 115.2kbps | Frequency Range | :430.24MHz to 439.75MHz |
| Current - Output | :10.5mA | Voltage - Supply | 2.2 V ~ 5.4 V |
| Current - Transmitting | 11mA | Available Frequency Range | SPI |
| Frequency Bands (Low / High) | 433 MHz | Voltage - Input Offset (Max) | -109dBm |
Mechanical
| Width | 15.9mm | Height | 4.2mm |
| Length | 16.1mm | Weight | 0.005 |
| Packaging | Bulk | Package / Case | Module |
| Size / Dimension | 16.1 x 15.9 x 4.2mm | Antenna Connector | PCB, Surface Mount |
Product Info
| Module/Board Type | Transmitter | Modulation or Protocol | FSK |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- ALPHA-TX,RX
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
