R5F21238DFP#U0
| Manufacturer | |
| Description | MCU 16-bit R8C CISC 64KB Flash 3.3V/5V 48-Pin LQFP Tray MCU 16-bit R8C R8C CISC 64KB Flash 3.3V/5V 48-Pin LQFP Tray R8C 64K LQFP48 85°C IC MCU 16BIT 64KB FLASH 48LQFP MCU 16-Bit R8C CISC 64KB Flash 3.3V/5V 48-Pin LQFP IC, MCU, 16BIT, R8C/23, 48LQFP |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 554 | Unit Pack | 1 |
| Standard Package | Trays | Standard Package Name | QFP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
| Approval Agency | No | ||
Electrical
| Speed | 20 MHz | Ethernet | 0 |
| RAM Size | 3 KB | Core Size | 16-Bit |
| Core Type | R8C | Interface | I2C/LIN/UART |
| Clock Rate | 20 | EEPROM Size | 0Byte |
| Memory Size | 2 KB | Memory Type | FLASH |
| Display Type | no | Number of I/O | 41 |
| Number of Bits | 10 | Voltage Rating | 3 |
| Watchdog Timer | 1 | Clock Frequency | :20MHz |
| Data Converters | A/D 12x10b | Frequency - Max | 20MHz |
| Number of DAC's | 7 | Oscillator Type | Internal |
| Serial Protocol | 2 | Voltage - Supply | 3.3|5 V |
| Digital I/O Lines | 41pins | Resolution (Bits) | 10Bit |
| Number of Channels | 1 | Program Memory Size | 64 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 12 |
| Voltage - Input (Min) | 5.5V | Voltage - Supply (Min) | 5.5 |
| Power Dissipation (Max) | 300 mW | Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 5.5 V |
Mechanical
| Width | 7 | Weight | 0.0007 |
| Packaging | TRAY | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Number of Pins | :48 | Package / Case | 48LQFP |
| Material Finish | :- | Length - Overall | 7 |
| Package Quantity | LQFP | Number of Positions | 48 |
| Shell Size - Insert | 1.4 | Supplier Device Package | 48-LQFP (7x7) |
| Number of Cores/Bus Width | 16 Bit | ||
Product Info
| USB | No | Protocol | 1 |
| Base Unit | :M16C/R8C/Tiny | Matchcode | R5F21238DFP#U0 |
| CAN Number | 1 | Flash Size | :64KB |
| SPI Number | 1 | On-Chip RAM | 12-chx10-bit |
| Peripherals | POR, Voltage Detect, WDT | Architecture | CISC |
| Connectivity | CAN, I²C, LIN, SIO, SSU, UART/USART | Core Processor | R8C |
| Number of Timers | 5 | Controller Series | :R8C/2x |
| Standard Leadtime | 16 weeks | RF Family/Standard | R8C |
| DigiKey Programmable | Yes | Printed Circuit Board | 48 |
| Number of A/D Converters | :12 | ||
Environmental
| Temperature - Test | -40°C | Operating Temperature | -40 to 85 °C |
Documents & Media
PDF Document
PDF Document
Similar Parts
R0K521237S001BE
renesas electronics

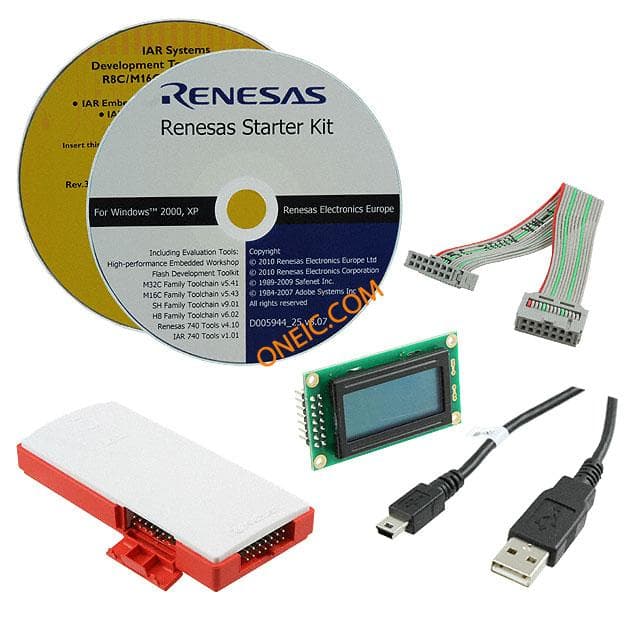

Starter Kit For R8C/23 Is Intended As A User-Friendly Introductory And Evaluation Tool KIT STARTER FOR R8C/23 E8A R5F21237JFP, WITH E8A EMULATOR, KIT
$1302.7440
Details
YRCDK8C
renesas electronics

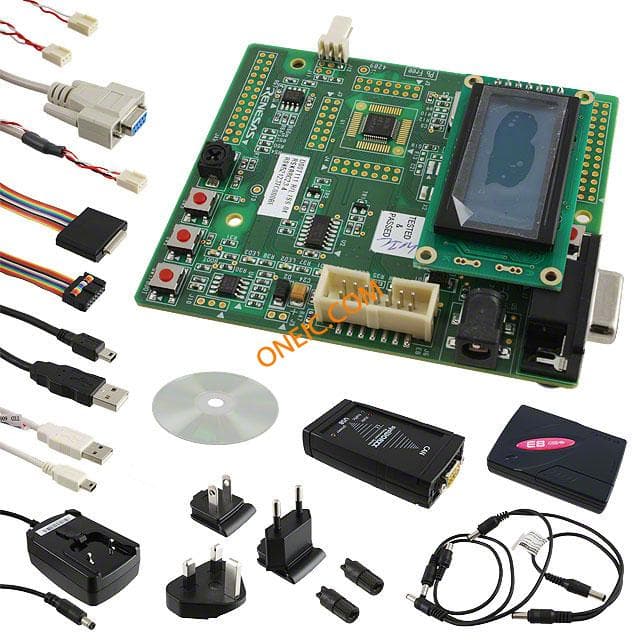

CAN DEVELPOMENT KIT KIT DEV EVAL FOR CAN R8C/23
$3646.5680
Details
R0K521237S000BE
renesas electronics

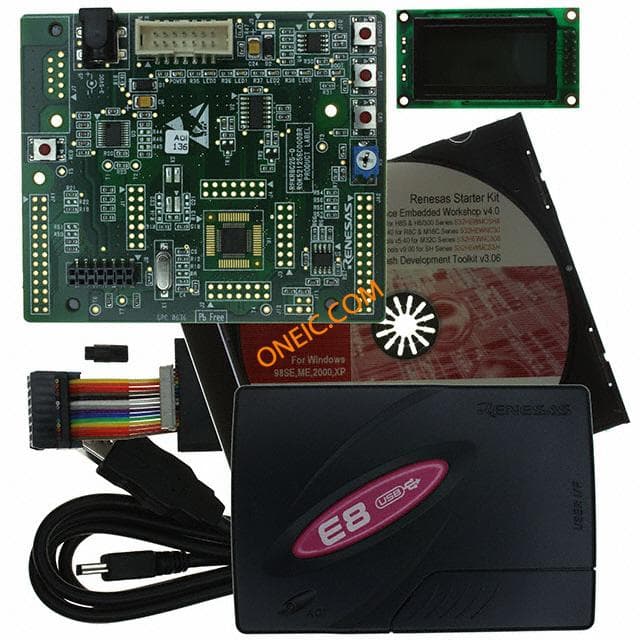

Renesas Starter Kit For R8C/23 KIT DEV RSK R8C/23
