M30291FAHP#U5A
| Manufacturer | |
| Description | MCU 16-bit/32-bit M16C CISC 96KB Flash 3.3V/5V 64-Pin LQFP MCU 16-bit M16C CISC 96KB Flash 3.3V/5V 64-Pin LQFP IC MCU 16BIT 96KB FLASH 64LQFP M16C 96K LQFP64 85°C |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Trays | Standard Package Name | QFP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
| Approval Agency | No | ||
Electrical
| Speed | 20 MHz | Ethernet | 0 |
| RAM Size | 8 KB | Core Size | 16-Bit |
| Interface | CAN/I2C/UART | Clock Rate | 20 |
| Resolution | 0 | Memory Size | 96 KByte |
| Memory Type | FLASH | Input Signal | 2 |
| Number of I/O | 55 | Number of Bits | 10 |
| Voltage Rating | 3 | Watchdog Timer | 1 |
| Data Converters | A/D 16x10b | Frequency - Max | 20 MHz |
| Oscillator Type | Internal | Serial Protocol | 3 |
| Voltage - Supply | 3.3|5 V | Digital I/O Lines | 55 pins |
| RS-232 (422, 485) | 1 | Resolution (Bits) | 16 bit |
| Serial Interfaces | 3 | Sampling Frequency | 300KSPS |
| Program Memory Size | 96 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 16 | Voltage - Input (Min) | 5.5 V |
| Voltage - Supply (Min) | 5.5 | Power Dissipation (Max) | 300 mW |
| Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 5.5 V | Number of Independent Delays | 13 |
Mechanical
| Width | 10 | Packaging | Tray |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Package / Case | 64LQFP | Length - Overall | 10 |
| Package Quantity | LQFP | Number of Positions | 64 |
| Shell Size - Insert | 1.4 | Supplier Device Package | 64-LQFP (10x10) |
| Number of Cores/Bus Width | 16|32 Bit | ||
Product Info
| USB | 0 | Features | CAN Controller |
| Protocol | 1 | On-Chip RAM | 16-chx10-bit |
| Peripherals | DMA, POR, PWM, Voltage Detect, WDT | Architecture | CISC |
| Connectivity | CAN, I²C, IEBus, SIO, UART/USART | Core Processor | M16C/60 |
| Number of Timers | 9 | RF Family/Standard | M16C |
| DigiKey Programmable | Yes | Printed Circuit Board | 64 |
Environmental
| Temperature - Test | 85 °C | Operating Temperature | -20 to 85 °C |
Documents & Media
PDF Document
Similar Parts
M30290T2-CPE-HP
renesas electronics
Compact Emulator For M16C/26A, 28, 29 Groups EMULATOR COMPACT FOR M16C/TINY
$11437.2600
Details
R0K330290S000BE
renesas electronics
Evaluation Starter Kit For M16C/29 KIT EVAL STARTER FOR M16C/29 R0K330290S000BE, Development Kit, 16 bit, M16C
$1779.7300
Details

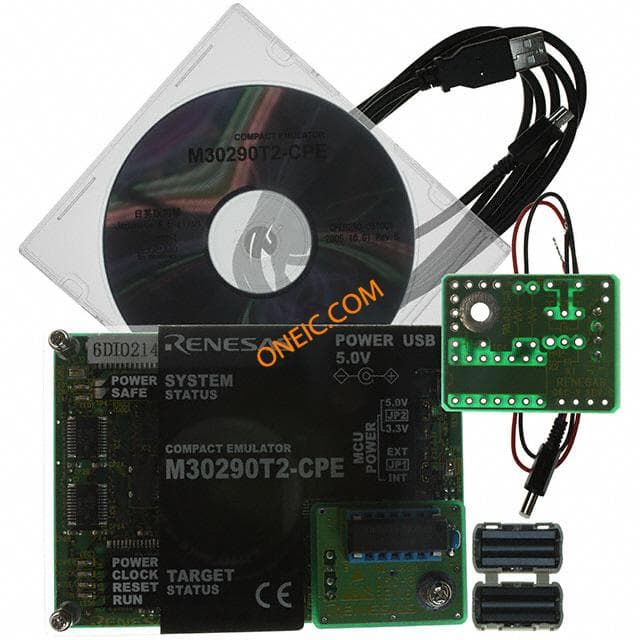

M30290T2-CPE
