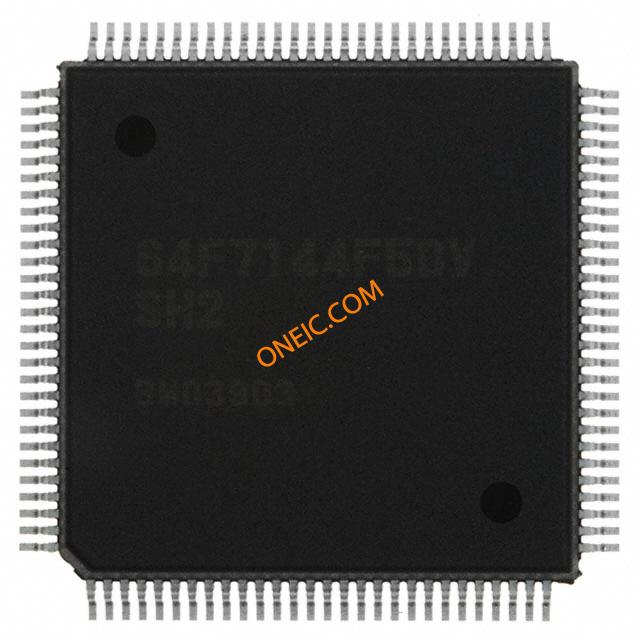

HD64F7144F50V
| Manufacturer | |
| Description | MCU 32-bit SuperH RISC 256KB Flash 3.3V 112-Pin PQFP SH7144 256K QFP112 75°C IC MCU 32BIT 256KB FLASH 112QFP MCU 32-Bit SuperH RISC 256KB Flash 3.3V 112-Pin PQFP |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 206 | Unit Pack | 1 |
| Standard Package | Trays | Standard Package Name | QFP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Leadfree Defin | RoHS-conform | Approval Agency | No |
Electrical
| Speed | 40 MHz | RAM Size | 8 KB |
| Core Size | 32-Bit | Interface | I2C/SCI |
| Clock Rate | 40 | Memory Size | 256KByte |
| Memory Type | FLASH | Number of I/O | 74 |
| Number of Bits | 10 | Voltage Rating | 3 |
| Data Converters | A/D 8x10b | Frequency - Max | 50MHz |
| Number of DAC's | 6 | Oscillator Type | Internal |
| Voltage - Supply | 3.3 V | Digital I/O Lines | 82pins |
| Resolution (Bits) | 16bit | Number of Channels | 1 |
| Sampling Frequency | 185KSPS | Program Memory Size | 256 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 8 |
| Voltage - Input (Min) | 5.5V | Voltage - Supply (Min) | 3.6 |
| Voltage - Supply (Vcc/Vdd) | 3 V ~ 3.6 V | ||
Mechanical
| Width | 20 | Packaging | TRAY |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Package / Case | 112PQFP | Length - Overall | 20 |
| Package Quantity | PQFP | Number of Positions | 112 |
| Shell Size - Insert | 2.7 | Number of Cores/Bus Width | 32 Bit |
Product Info
| Protocol | 1 | Matchcode | HD64F7144F50V_ |
| SPI Number | 4 | On-Chip RAM | 8-chx10-bit |
| Peripherals | DMA, POR, PWM, WDT | Architecture | RISC |
| Connectivity | EBI/EMI, I²C, SCI | Core Processor | SH-2 |
| Number of Timers | 3 | Standard Leadtime | 16 weeks |
| RF Family/Standard | SuperH | DigiKey Programmable | Yes |
| Printed Circuit Board | 112 | ||
Environmental
| Temperature - Test | -20°C | Operating Temperature | -20 to 75 °C |
