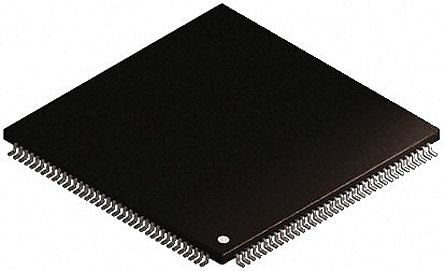

DF72115D160FPV
| Manufacturer | |
| Description | MCU 32-bit SuperH RISC 512KB Flash 1.5V/3.3V/5V 144-Pin LQFP DF72115D160FPV IC MCU 32BIT 512KB FLASH 144LQFP IC, MCU, 32BIT, SH7211, 144LQFP Renesas Electronics SuperH 系列 32 bit SH-2A MCU, 160MHz, 512 kB ROM 闪存, 32 kB RAM, 144针 LFQFP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Unit Pack | 0 |
| Standard Package | Trays | Standard Package Name | QFP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Rad Hardened | No | ||
Electrical
| Speed | 160 MHz | RAM Size | 32 KB |
| Core Size | 32-Bit | Core Type | SuperH |
| Frequency | 160 MHz | Interface | I2C/SCI |
| Clock Rate | 160 | Memory Size | :32KB |
| Memory Type | :Flash | Number of I/O | 73 |
| Number of Bits | 12 | Voltage Rating | 1.4|3|4.5 |
| Clock Frequency | :160MHz | Data Converters | A/D 8x12b; D/A 2x8b |
| Number of DAC's | 2 | Oscillator Type | External |
| Voltage - Supply | 1.5|3.3|5 V | Program Memory Size | 512 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 8 |
| Voltage - Supply (Min) | 1.4/3/4.5 V | Number of Bits per Element | 8 |
| Voltage - Supply (Vcc/Vdd) | 1.4 V ~ 1.6 V | ||
Mechanical
| Width | 20 | Weight | 0.0011 |
| Packaging | Tray | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Number of Pins | :144 | Package / Case | 144LQFP |
| Package Cooled | LQFP | Material Finish | :- |
| Length - Overall | 20 | Package Quantity | LQFP |
| Number of Positions | 144 | Shell Size - Insert | 1.4 |
| Number of Cores/Bus Width | 32 Bit | ||
Product Info
| Protocol | 1 | Base Unit | :(SuperH) SH7200 |
| Flash Size | :512KB | On-Chip RAM | 8-chx12-bit |
| Peripherals | DMA, POR, PWM, WDT | Architecture | RISC |
| Connectivity | EBI/EMI, I²C, SCI | Programmable | Yes |
| Core Processor | SH-2A | Number of Timers | 11 |
| Controller Series | :SuperH RISC | RF Family/Standard | SuperH |
| DigiKey Programmable | Yes | Printed Circuit Board | 144 |
| Number of A/D Converters | :8 | ||
Environmental
| Operating Temperature | -40 to 85 °C | Operating Temperature - Junction | 85C |
