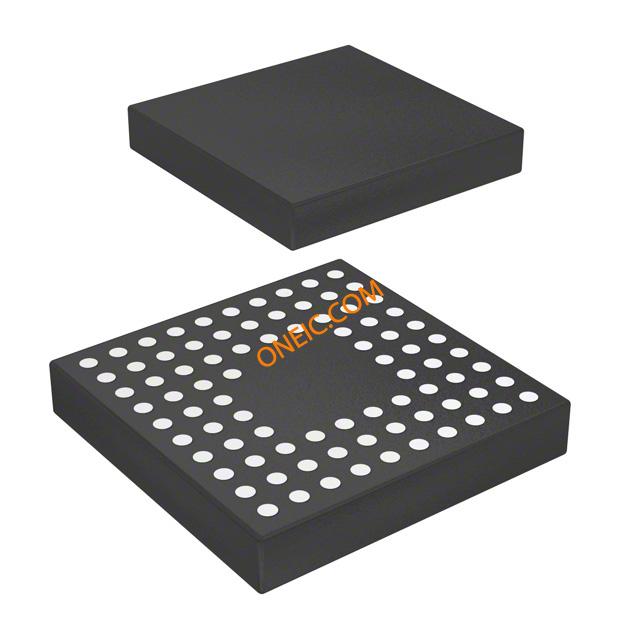

DF38076RLP10V
| Manufacturer | |
| Description | MCU 16-bit/32-bit H8 CISC 52KB Flash 2.5V/3.3V 85-Pin TFLGA MCU 16-bit H8 CISC 52KB Flash 2.5V/3.3V 85-Pin TFLGA IC MCU 16BIT 52KB FLASH 85LGA |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | No | ||
Electrical
| Speed | 10 MHz | RAM Size | 2 KB |
| Core Size | 16-Bit | Interface | I2C/SCI |
| Clock Rate | 10 | Number of I/O | 55 |
| Number of Bits | 10 | Voltage Rating | 1.8 |
| Data Converters | A/D 8x10b | Oscillator Type | Internal |
| Voltage - Supply | 2.5|3.3 V | Program Memory Size | 52 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 8 |
| Voltage - Supply (Min) | 3.6 | Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 3.6 V |
Mechanical
| Width | 7 | Packaging | Tray |
| Mounting Type | Surface Mount | Package / Case | 85TFLGA |
| Length - Overall | 7 | Package Quantity | TFLGA |
| Number of Positions | 85 | Shell Size - Insert | 1.2(Max) |
| Number of Cores/Bus Width | 16|32 Bit | ||
Product Info
| Protocol | 1 | On-Chip RAM | 8-chx10-bit |
| Peripherals | LCD, POR, PWM, WDT | Architecture | CISC |
| Connectivity | I²C, IrDA, SCI | Core Processor | H8/300H |
| Number of Timers | 1 | RF Family/Standard | H8 |
| DigiKey Programmable | Yes | Printed Circuit Board | 85 |
Environmental
| Operating Temperature | -20 to 75 °C | ||
