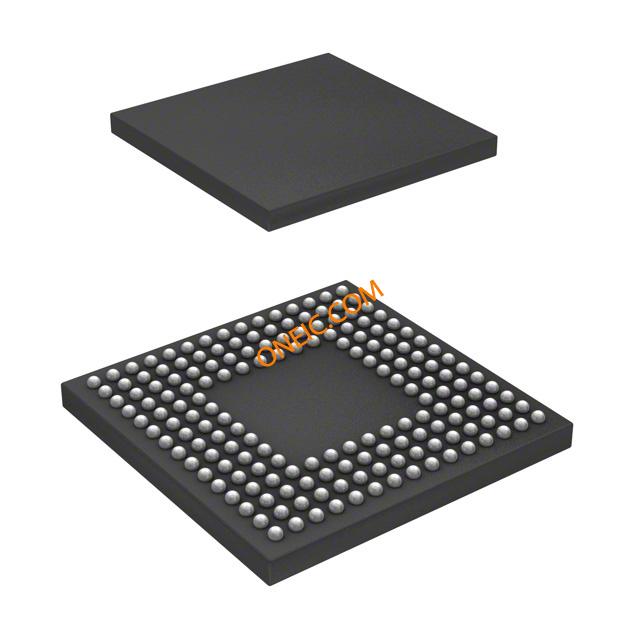

DF2116VBG20V
| Manufacturer | |
| Description | MCU 16-bit/32-bit H8 CISC 128KB Flash 3.3V 176-Pin LFBGA IC MCU 16BIT 128KB FLASH 176BGA |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 1 | Standard Package | Trays |
| Standard Package Name | BGA | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | No | ||
Electrical
| Speed | 20 MHz | RAM Size | 8 KB |
| Core Size | 16-Bit | Interface | I2C/SCI |
| Clock Rate | 20 | Number of I/O | 112 |
| Number of Bits | 10 | Voltage Rating | 3.3 |
| Data Converters | A/D 16x10b | Oscillator Type | Internal |
| Voltage - Supply | 3.3 V | Program Memory Size | 128 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 16 |
| Voltage - Supply (Min) | 3.6 | Voltage - Supply (Vcc/Vdd) | 3 V ~ 3.6 V |
Mechanical
| Width | 13 | Packaging | Tray |
| Mounting Type | Surface Mount | Package / Case | 176LFBGA |
| Length - Overall | 13 | Package Quantity | LFBGA |
| Number of Positions | 176 | Shell Size - Insert | 1.2(Max) |
| Number of Cores/Bus Width | 16|32 Bit | ||
Product Info
| On-Chip RAM | 16-chx10-bit | Peripherals | POR, PWM, WDT |
| Architecture | CISC | Connectivity | I²C, LPC, SCI |
| Core Processor | H8S/2000 | Number of Timers | 3 |
| RF Family/Standard | H8 | DigiKey Programmable | Yes |
| Printed Circuit Board | 176 | ||
Environmental
| Operating Temperature | -20 to 75 °C | ||
