ISL6523EVAL1
| Manufacturer | |
| Description | Evaluation Board Vrm8.5 Dual PWM And Dual Linear Power System Controller ISL6523 EMBEDDED VRM8.5 EVAL BOARD EVALUATION BOARD VRM8.5 ISL6523 Power Management IC Development Tools ISL6523 EMBEDDED VRM 8 5 EVAL BRD |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Unit Pack | 1 |
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | ||
Electrical
| Current - Output | 14A, 4A, 1A, 1A | Regulator Topology | Buck |
| Frequency - Switching | 200kHz | Voltage - Input (Min) | 1.05 ~ 1.825V, 1.2V, 1.5V, 1.8V |
Mechanical
| Packaging | Bulk | Board Thickness | Fully Populated |
Product Info
| Type | Development Kit | Contents | Board |
| Main Purpose | Special Purpose DC/DC, VRM Supply | Outputs and Type | 4, Non-Isolated |
| RF Family/Standard | ISL6523 | Utilized IC / Part | ISL6523 |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts

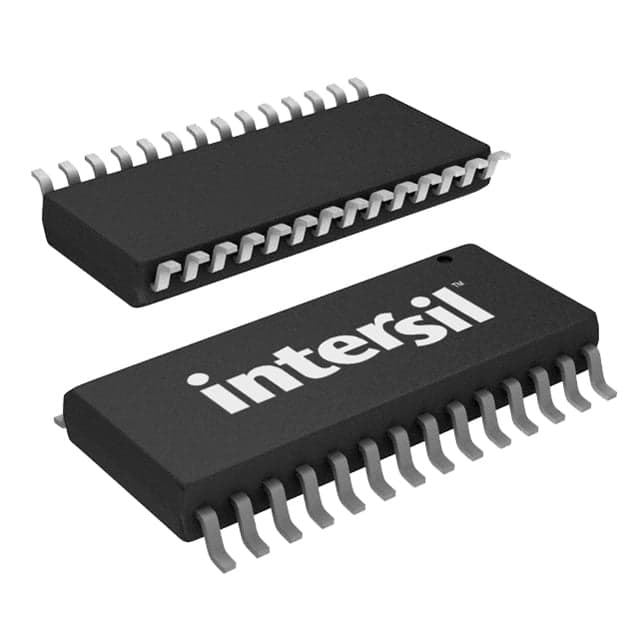

ISL6523CBZ
Renesas Electronics Corporation
Voltage Mode PWM Controller 1.05V to 1.825V/1.2V/1.5V/1.8V 25A 28-Pin SOIC W Pb-Free 4 IN 1 CONTROLLER,VRM 8.5 DAC IC CTRLR VRM8.5 PWM DUAL 28-SOIC Switching Controllers 4 IN 1 CNTRLR VRM 8 5 DAC 28PIN2 IC CTRLR VRM8.5 PWM DUAL 28-SOIC HT SUSA CODE:8542390000
Details
ISL6523CBZ-T
Renesas Electronics Corporation
Voltage Mode PWM Controller 1.05V to 1.825V/1.2V/1.5V/1.8V 25A 28-Pin SOIC W T/R Pb-Free 4/1 CNTRL,VRM8.5DAC,28SOIC,2S IC CTRLR VRM8.5 PWM DUAL 28-SOIC Switching Controllers 4/1 CNTRL VRM8 5DAC 28 2SWITCH/2LIN IC CTRLR VRM8.5 PWM DUAL 28-SOIC HT SUSA CODE:8542390000
Details
