ISL6443AEVAL2Z
| Manufacturer | |
| Description | Evaluation board For 300KHz Dual, 180Degree Out-Of-Phase, Step-Down PWM And Single Linear Controller ISL6443A EVALUATION BOARD 2 - RoHS EVALUATION BOARD FOR ISL6443A Power Management IC Development Tools ISL6443A EVAL BRD 2 ROHS CMPL ISL6443A EVALUATION BOARD 2 - RoHS COMPLIANT - QFN HT SUSA CODE:8534000040 |
| Category |
Business
| MOQ | 1 | Unit Pack | 1 |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current - Output | 2A, 2A, 200mA | Voltage - Supply | 1.8V, 3.3V, 1.2V |
| Regulator Topology | Buck | Current Rating (Max) | 2A, 2A, 200mA |
| Frequency - Switching | 300kHz | Voltage - Input (Min) | 1.8V, 3.3V, 1.2V |
Mechanical
| Packaging | Bulk | Board Thickness | Fully Populated |
Product Info
| Type | Development Kit | Contents | Board |
| Main Purpose | DC/DC, Step Down with LDO | Outputs and Type | 3, Non-Isolated |
| RF Family/Standard | LM48823TL | Utilized IC / Part | ISL6443A |
Documents & Media
Similar Parts

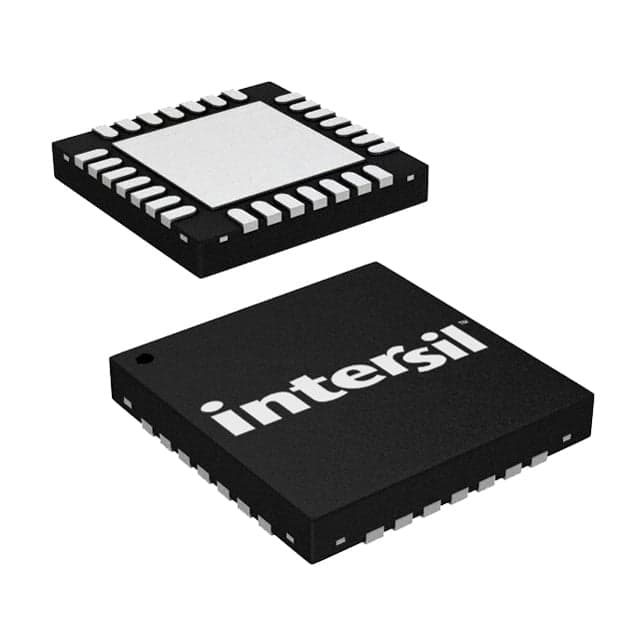

ISL6443IRZ-T
Renesas Electronics Corporation
Soft Sw PWM Cntrlr 3-OUT PWM Controller 5V/12V 340KHz 28-Pin QFN EP T/R LEAD-FREE Dual PWM controller + linea IC CTRLR PWM DUAL 300KHZ 28-QFN Switching Controllers DL PWM CNTRLR LINEAR CNTRLR 300KHZ
ISL6443IRZ-TK
Renesas Electronics Corporation
Soft Sw PWM Cntrlr 3-OUT PWM Controller 5V/12V 340KHz 28-Pin QFN EP T/R LEAD-FREE Dual PWM controller + linea IC CTRLR PWM DUAL 300KHZ 28-QFN Switching Controllers DL PWM CNTRLR LINEAR CONT 300KHZ 5 LEAD-FREE Dual PWM controller + linear cont., 300KHZ,HT SUSA CODE:8542390000
ISL6443AIRZ-TK
Renesas Electronics Corporation
Soft Sw PWM Cntrlr 3-OUT PWM Controller 5V/12V 340KHz 28-Pin QFN EP T/R Pb-FREE Dual PWM controller + linear IC CTRLR SGL/STP DWN PWM 28-QFN Switching Controllers DL PWM CNTRLR LINEAR CNTRLR 300KHZ Pb-FREE Dual PWM controller + linear controller, 300KHZ, QFN HT SUSA CODE:8542390000

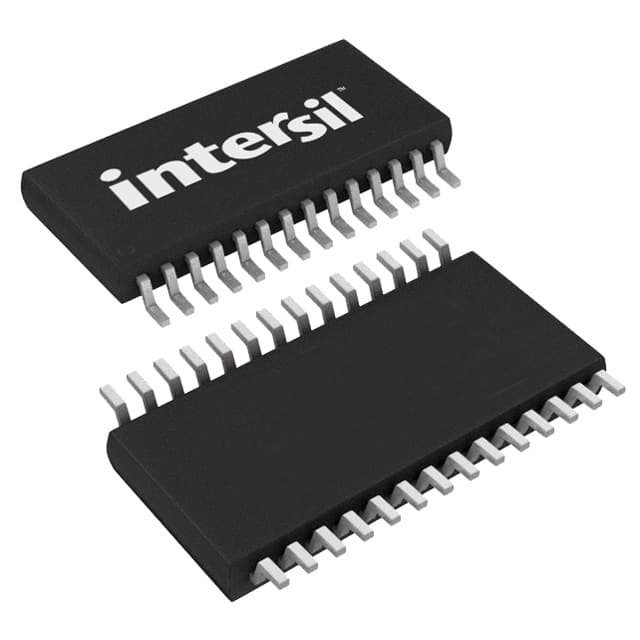

ISL6443AIVZ-TK
