ISL6439EVAL1
| Manufacturer | |
| Description | Evaluation Board For Single Sync Buck PWM Controller For Broadband Gateway Applications SINGLE 300KHZ PWM W/CHARGE PUMP - SOI EVALUATION BOARD 1 ISL6439 Power Management IC Development Tools SINGLE 300KHZ PWM W/CHRG PUMP PKG SINGLE 300KHZ PWM W/CHARGE PUMP - SOIC PKG HT SUSA CODE:8534000040 |
| Category |
Business
| MOQ | 1 | Product | Development Kits |
| Unit Pack | 1 | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | ||
Electrical
| Current - Output | 20A | Voltage - Supply | 0.8 V ~ 3.3 V |
| Regulator Topology | Buck | Current Rating (Max) | 20A |
| Frequency - Switching | 300kHz | Voltage - Input (Min) | 0.8 V ~ 3.3 V |
Mechanical
| Packaging | Bulk | Board Thickness | Fully Populated |
Product Info
| Type | Development Kit | Contents | Board |
| Main Purpose | DC/DC, Step Down | Outputs and Type | 1, Non-Isolated |
| RF Family/Standard | ISL6439 | Utilized IC / Part | ISL6439 |
Documents & Media
Similar Parts
ISL6439CBZ-T
Renesas Electronics Corporation
Voltage Mode PWM Controller 0.8V to 3.3V 2A 14-Pin SOIC N T/R Pb-Free 300 KHZ, SINGLE PWM W/CHARGE IC REG CTRLR BUCK PWM VM 14-SOIC Switching Controllers 300 KHZ SINGLE PWM W/CHRG PUMP 14LD N

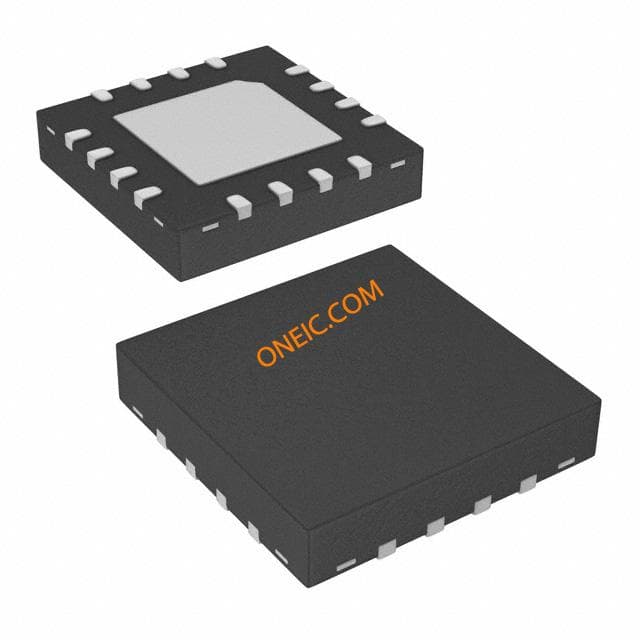

ISL6439IRZ-T
