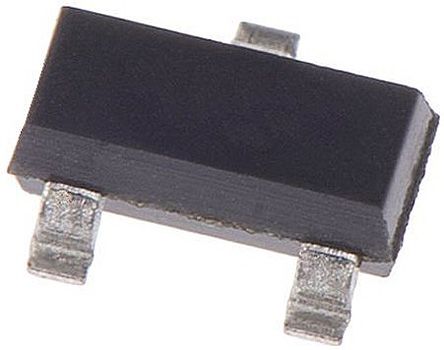

ISL60002BAH333Z-TK
| Manufacturer | |
| Description | V-Ref Precision 3.3V 20mA 3-Pin SOT-23 T/R PREC.LOW PWR FGA VREF SOT23-3 IC VREF SERIES PREC 3.3V SOT23-3 ISL60002BAH333Z-TK, Precision Voltage Reference 3.3V, 1mV 7mA 6.5V Max. 3-Pin SOT-23 Voltage References PBFREE PRECISION 3 3V HI OUTPUT FGA VF PbFree,Precision 3.3V High Output FGA Volt Ref,1.0mV,HT SUSA CODE:8542390000 Intersil Fixed 3.3V 电压参考, ±0.03 %精确度, 7mA, 6.5 V输入, 3针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1000 | Unit Pack | 1000 |
| Other Names | ISL60002BAH333Z-TKCT | Standard Package | Tape & Reel |
Compliance
| RoHS | Lead free / RoHS Compliant | Automotive | NO |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| Accuracy | 1.0mV | Tolerance | ±1mV |
| Reference Type | Precision | Voltage Rating | 3.3 V |
| Line Regulation | 200 uV/V | Load Regulation | 150 uV/mA |
| Current - Output | 20 mA | Number of Channels | 1 |
| Resistor-Ratio-Drift | 20ppm/°C | Contact Voltage (Max) | 6.5 V |
| Voltage - Input (Min) | 3.3V | Voltage - Output (Max) | 3.3 V |
| Current - Quiescent (Iq) | 700nA | Current - Output / Channel | 20 mA |
| Accuracy - Highest (Lowest) | 1 mV | ||
Mechanical
| Width | 1.4mm | Height | 0.94mm |
| Length | 3.04mm | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Package / Case | 3SOT-23 |
| Package Cooled | SOT-23 | Size / Dimension | 3.04 x 1.4 x 0.94mm |
| Number of Positions | 3 | Supplier Device Package | SOT-23-3 |
Product Info
| Topology | Series | Matchcode | ISL60002BAH333Z-TK |
| Programmable | Precision | Standard Leadtime | 10 weeks |
Environmental
| Temperature - Test | -40°C | Operating Temperature | -40 to 105 °C |
| Temperature Coefficient | 20 ppm/°C | Temperature Coefficient (Typ) | 20 PPM/C |
