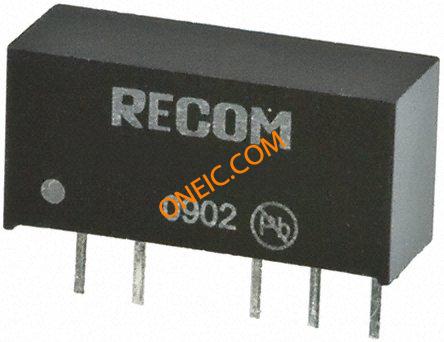

RBM-0512S
| Manufacturer | |
| Description | DC/DC Converters 1W DC/DC MICRO 3kV UNREG 5Vin 12Vout CONV DC/DC 1W 5VIN 12VOUT DC/DC converter,5Vin,12Vout 83mA,1W DC/DCCONVERTER,12V1W DC/DC converter 5 VDC 12 VDC, RBM-0512S, Recom Recom RBM 系列 隔离式直流-直流转换器 , 12V dc输出, 83mA输出 ±10%负载调节 ±1.2%线路调节 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Tradename | Econoline |
| Standard Package | 30 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Noise | 100mV Pk-Pk | Ripple | 100 mVPP max. |
| Derating | no | Efficiency | 80% |
| Power - Max | 1W | Output Power | 1 W |
| Power (Watts) | 78 → 80% | Power - Rated | 1W |
| Voltage Rating | 5V dc | Line Regulation | ±1.2% |
| Load Regulation | ±10% | Voltage - Input | 5 V |
| Current - Output | 83mA | Voltage - Supply | 1 s |
| Number of Outputs | 1 | Current - Output 1 | 83 mA |
| Power (Watts) - Max | 1W | Voltage - Breakdown | 3000 VDC |
| Voltage - Isolation | 3kV (3000V) | Current Rating (Max) | 83mA |
| Voltage - Input (Min) | 12V | Voltage Regulation - Load | ±1.2% |
Mechanical
| Size | 16.55 x 6.0 x 7.7 mm | Depth | 7.7mm |
| Width | 6mm | Height | 7.7 mm |
| Length | 16.55mm | Weight | 1.3g |
| Packaging | Tube | Mounting Type | Through Hole |
| Package / Case | 6-SIP Module (5 Leads) | Size / Dimension | 0.65" L x 0.24" W x 0.30" H (16.5mm x 6.0mm x 7.7mm) |
Product Info
| Type | Isolated Module | Series | RBM |
| Features | SCP | Function | Y |
| Connection Method | THD | ||
Environmental
| Operate Time | 1005000 h, 195000 h | Operational Life | 195000 h, 1005000 h |
| Operating Temperature | -40°C ~ 85°C | Maximum Temperature Limit | +85°C |
