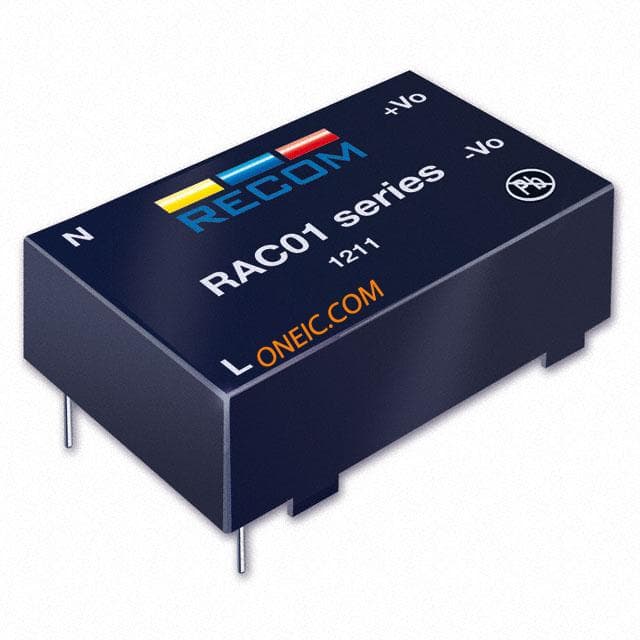

RAC01-24SC
| Manufacturer | |
| Description | Linear and Switching Power Supplies CONV AC/DC 1W 80-277VIN 24VOUT AC/DC Power Supply Single-OUT 24V 0.042A 1W 4-Pin PDIP 2W DC/DC-Conv.ECONOL.SMD 1kV unreg CONV AC/DC 1W 24V OUT SGL T/H Power Supply,Encapsulated,PCB,24V 1W Switching Power Supplies CONV AC/DC 1W 80-277VIN 24VOUT Recom 1W 单输出 嵌入式开关模式电源 SMPS , 90 → 277V ac输入, 24V dc输出, 42mA输出, 73%效能, 密封封装 |
| Category |
Business
| MOQ | 22 | Product | Switching Supplies |
| Tradename | Powerline | Unit Pack | 22 |
| Standard Package | 22 | Standard Package Name | PDIP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| ESD Protection | No | Approval Agency | CE, EN, UL |
Electrical
| Noise | 100mV ac | Frequency | 47 to 63 |
| Efficiency | 73% | Power - Max | 1W |
| Output Power | 1 W | Power (Watts) | 1W |
| Power - Input | Switching (Closed Frame) | Power - Rated | 1W |
| Voltage Rating | 90 → 277V ac | Line Regulation | ±2% |
| Load Regulation | ±6% | Current - Output | 42mA |
| Voltage - Supply | 90 ~ 277 VAC | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 1W |
| Voltage - Isolation | 3000VAC | Current Rating (Max) | 42mA |
| Voltage - Input (Min) | 24V | Voltage Regulation - Load | ±6% |
| Current - Output / Channel | 42 mA | ||
Mechanical
| Size | 1.33" L x 0.87" W x 0.71" H (33.7mm x 22.2mm x 18.0mm) | Depth | 17.75mm |
| Width | 22.2mm | Height | 17 mm |
| Length | 33.7mm | Weight | 0.055 lb (24.95g) |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package Cooled | Encapsulated | Length - Overall | 33.7 |
| Package Quantity | PDIP | Panel Mount Type | Enclosed |
| Size / Dimension | 1.33" L x 0.87" W x 0.71" H (33.7mm x 22.2mm x 18.0mm) | Number of Positions | 4 |
| Shell Size - Insert | 17.75 | ||
Product Info
| Type | Regulated | Style | Enclosed |
| Series | RAC01 | Features | SCP |
| Function | Y | Applications | Commercial |
| Printed Circuit Board | 4 | ||
Environmental
| Operate Time | 666000h | Operational Life | 666000h |
| Operating Temperature | -25°C ~ 80°C | Maximum Temperature Limit | +85°C |
