R113181000
| Manufacturer | |
| Description | Conn MCX PL 0Hz to 6GHz 50Ohm Crimp RA Cable Mount Gold Over Nickel RF Connectors / Coaxial Connectors MCX(M) R/A PLG CRP 2/50S, 100P PLUG, MCX, CRIMP, R/A, 2/50S |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Standard Package | Bulk |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
Electrical
| Frequency | 0 to 6 GHz | Impedance | 50 Ohm |
| Voltage Rating | :170V | Coupling Factor | Slide On |
| Frequency - Max | 6 GHz | Voltage - Breakdown | :500V |
| Insulation Resistance | :1000Mohm | Impedance - Unbalanced/Balanced | :RG178 B/U, RG196 A/U, URM110, KX21 A |
Mechanical
| Weight | 0.0314 | Material | :Brass |
| Cable Type | KX 21, RG 178, RG 196 | Orientation | Right Angle |
| Termination | Crimp | Body Material | Brass |
| Mounting Type | Cable Mount | Connector Type | :MCX Coaxial |
| Contact Finish | Gold Over Nickel | Plating - Body | :Gold |
| Contact Material | Brass | Termination Style | Crimp |
| Supplier Device Package | :Right Angle Plug | 1st Connector Mounting Type | :Cable |
Product Info
| Type | MCX | Gender | PL |
| Series | :- | Connection Type | 2/50S Cable |
| RF Family/Standard | MCX | ||
Environmental
| Mating Cycles | :500 | Operating Temperature | :155°C |
Documents & Media
PDF Document
PDF Document
Similar Parts

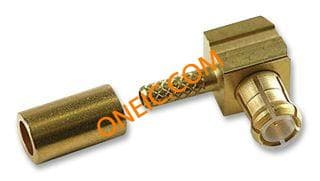

R113182000
