20-101-1329
| Manufacturer | |

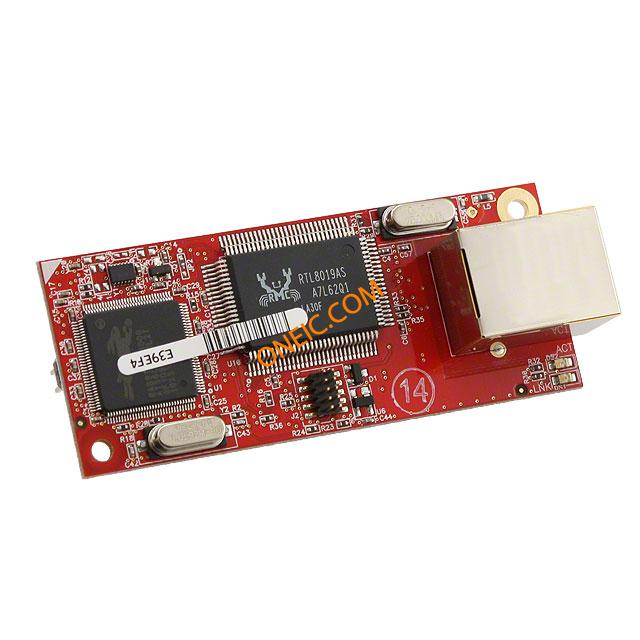

| Description | System-On-Modules - SOM RCM3720 Core Module RCM3720 W/MOUNTING HOLES Rabbit Semiconductor Rabbit CP 22MHz Core Module, 4.75 to 5.25V dc Rabbit处理器 22MHz 核心模块, 4.75 → 5.25V |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Speed | 22.1MHz | Memory | 512kB |
| RAM Size | 256KB | Frequency | 22 MHz |
| Interface | Ethernet, Serial | Memory Size | 256 kB |
| Memory Type | Flash, SRAM | Number of I/O | 串联，SPI |
| Voltage - Supply | 4.75 V to 5.25 V | Available Frequency Range | IrDA |
Mechanical
| Width | 75mm | Height | 23mm |
| Length | 30mm | Connector Type | IDC Header 2x20 |
| Size / Dimension | 75 mm x 30 mm x 23 mm | ||
Product Info
| Type | Rabbit 3000 | Features | Pulse Width Modulator, Quadrature Decoder Interface, Real Time Clock, Slave Interface, Timers, Watchdog Timer |
| Flash Size | 512 kB | Form Factor | RCM3700 |
| On-Chip RAM | 256 kB SRAM | Battery Series | Yes |
| Core Processor | Rabbit 3000 | Proto Board Type | SRAM |
| Module/Board Type | MPU Core | Network Technology | 10 Base-T |
| Other Specifications | 512kB | ||
Environmental
| Operating Temperature | + 70 C | ||
