20-101-1309
| Manufacturer | |

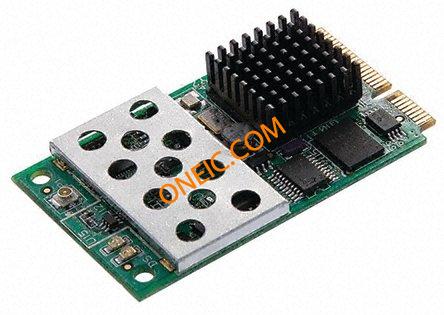

| Description | WiFi / 802.11 Modules RCM5650w MODULE WI-FI RCM5650W MiniCore RCM5650W WiFi Core Module 4MB Rabbit Semiconductor WLAN 模块, CMOS, HDLC, SDLC, SPI总线接口, 3.15 → 3.45V dc, 支持802.11b/g协议 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | Q5809497 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Standards | WEP, WPA, WPA2 |
| Safety Category | WEP, WPA, WPA2 | Security Features | AES |
Electrical
| Speed | 73.73MHz | RAM Size | 1MB |
| Data Rate | 11 Mbps, 54 Mbps | Interface | Serial |
| Modulation | DSSS, OFDM | Power - Max | 15 dBm |
| Current - Supply | 625 mA | Voltage - Supply | 3.15 V to 3.45 V |
| Available Frequency Range | CMOS, HDLC, SDLC, SPI | Current - Supply (Main IC) | 625 mA |
| Frequency Bands (Low / High) | 2.4 GHz | ||
Mechanical
| Width | 30mm | Height | 10mm |
| Length | 51mm | Connector Type | Edge Connector - 52 |
| Size / Dimension | 51 mm x 30 mm x 10 mm | Antenna Connector | RPSMA, U.FL |
Product Info
| Protocol | 802.11 b/g | Flash Size | 4MB |
| Core Processor | Rabbit 5000 | Module/Board Type | MPU Core |
Environmental
| Operating Temperature | + 55 C | ||
Documents & Media
PDF Document
