20-101-1306
| Manufacturer | |

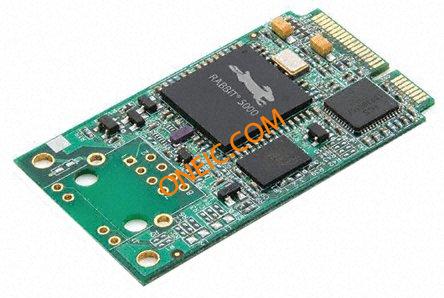

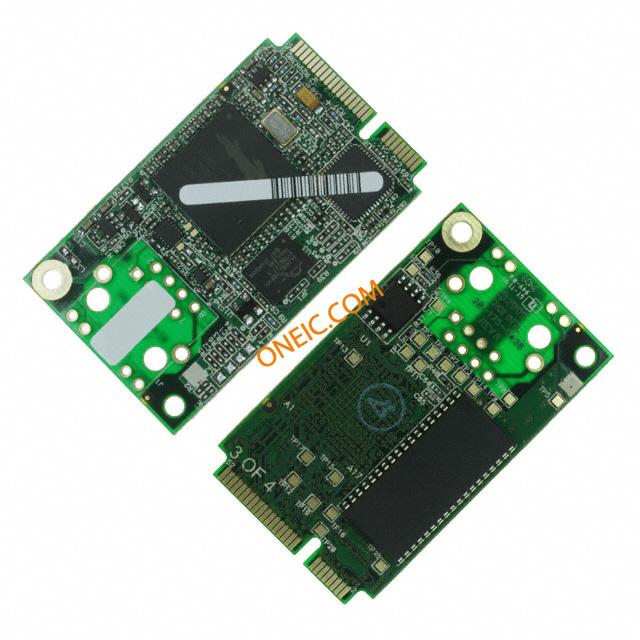

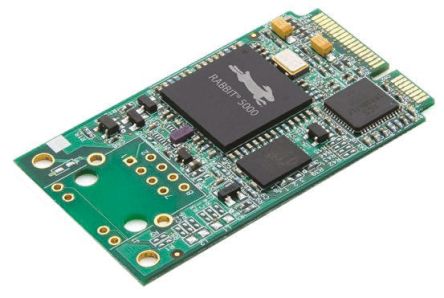

| Description | System-On-Modules - SOM RCM5750 Low-Profile Core Module CORE MODULE RCM5750 Rabbit Semiconductor Networking Module 20-101-1306, 10/100 Base-T, Serial Rabbit Semiconductor 网络模块 , 支持10/100 Base-T，串联网络 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Speed | 50MHz | RAM Size | 128KB (Internal), 512KB (External) |
| Frequency | 50 MHz | Interface | Ethernet, Serial |
| Memory Size | 128 kB | Memory Type | Flash, SRAM |
| Voltage - Supply | 3.15 V to 3.45 V | Available Frequency Range | SPI |
Mechanical
| Width | 30mm | Height | 3mm |
| Length | 51mm | Connector Type | Edge Connector - 52 |
| Size / Dimension | 51 mm x 30 mm x 3 mm | ||
Product Info
| Type | Rabbit 5000 | Features | 1 MB Flash Memory, 2 MB Serial Flash, 640 KB SRAM, Embedded Web Server, Open Source Code & Royalty-Free, Remote Firmware Update, Serial to Ethernet Bridge |
| Flash Size | 1 MB | Form Factor | RCM5700 |
| Battery Series | No | Core Processor | Rabbit 5000 |
| Module/Board Type | MPU Core | Network Technology | 10/100 Base-T, Serial |
Environmental
| Operating Temperature | + 85 C | ||
Documents & Media
PDF Document
