20-101-1305
| Manufacturer | |

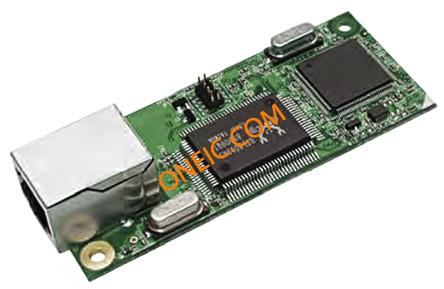

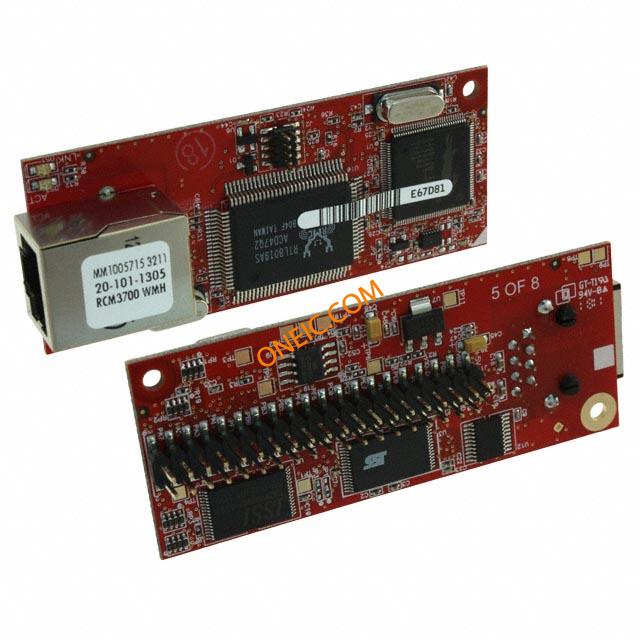

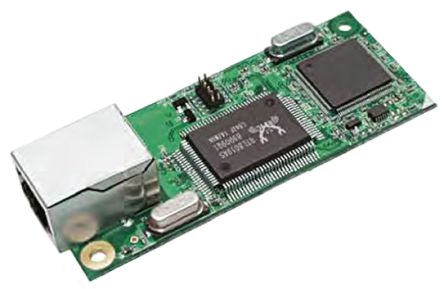

| Description | System-On-Modules - SOM RCM3700 Rabbitcore Module RCM3700 W/MOUNTING HOLES Rabbit Semiconductor Rabbit CP 22MHz Core Module, 4.75 to 5.25V dc Rabbit处理器 22MHz 核心模块, 4.75 → 5.25V |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | Factory Pack Quantity | 24 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Speed | 22.1MHz | Memory | 512kB |
| RAM Size | 512KB | Frequency | 22 MHz |
| Interface | Ethernet, Serial | Memory Size | 512 kB |
| Memory Type | Flash, SRAM | Number of I/O | 串联，SPI |
| Voltage - Supply | 4.75 V to 5.25 V | Available Frequency Range | IrDA |
Mechanical
| Size | 1.2" x 2.95" (30mm x 75mm) | Width | 75mm |
| Height | 23mm | Length | 30mm |
| Connector Type | IDC Header 2x20 | Size / Dimension | 75 mm x 30 mm x 23 mm |
Product Info
| Type | Rabbit 3000 | Series | RabbitCore® |
| Features | Pulse Width Modulator, Quadrature Decoder Interface, Real Time Clock, Slave Interface, Timers, Watchdog Timer | Flash Size | 512 kB |
| Form Factor | RCM3700 | On-Chip RAM | 512 kB SRAM |
| Battery Series | Yes | Core Processor | Rabbit 3000 |
| Proto Board Type | SRAM | Module/Board Type | MPU Core |
| Network Technology | 10 Base-T | Other Specifications | 512kB |
Environmental
| Operating Temperature | + 70 C | ||
Documents & Media
PDF Document
