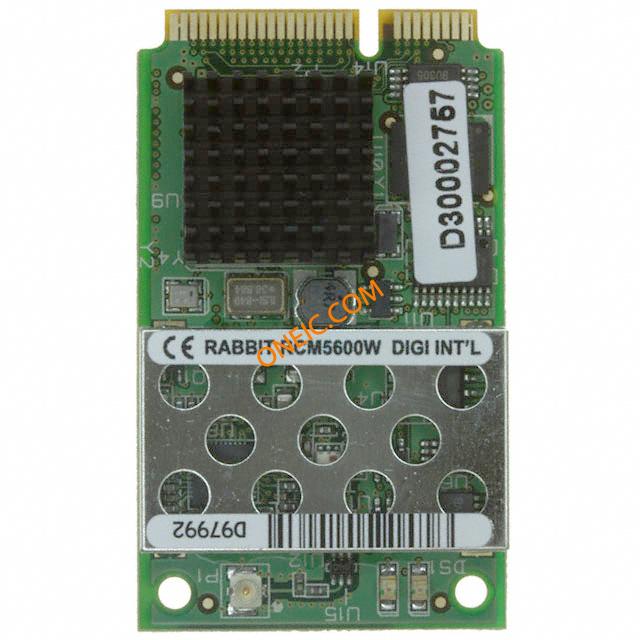

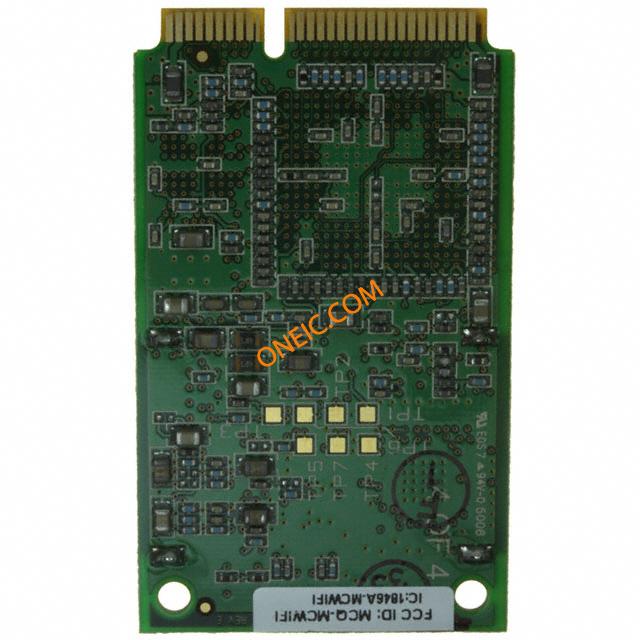

20-101-1265
| Manufacturer | |
| Description | WiFi / 802.11 Modules Model RCM5600W MODULE MINICORE RCM5600W MiniCore RCM5600W WiFi Core Module 1MB WIFI MODULE, 802.11, 2.4GHZ, PCI Rabbit Semiconductor WLAN 模块, CMOS, HDLC, SDLC, SPI总线接口, 3.15 → 3.45V dc, 支持802.11b/g协议 |
| Category |
Business
| Product Category | WiFi / 802.11 Modules | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Standards | WEP, WPA, WPA2 |
| Tariff No | 85235290 | Security Features | AES |
Electrical
| Data Rate | 11 Mbps, 54 Mbps | Frequency | 2.4GHz |
| Interface | Serial | Modulation | DSSS, OFDM |
| Memory Size | 1 MB Flash, 1MB SRAM | Power - Max | 19 dBm |
| Data Interface | Connector, Mini PCI express | Current - Supply | 625 mA |
| Voltage - Supply | 3.15 V to 3.45 V | Current - Receiving | 625mA |
| Current - Transmitting | 625mA | Available Frequency Range | CMOS, HDLC, SDLC, SPI |
| Current - Supply (Main IC) | 625 mA | Frequency Bands (Low / High) | 2.4 GHz |
Mechanical
| Width | 30mm | Height | 10mm |
| Length | 51mm | Weight | 0.35 |
| Packaging | Bulk | Package / Case | Module |
| Size / Dimension | 51 mm x 30 mm x 10 mm | Antenna Connector | RPSMA, U.FL |
Product Info
| Protocol | 802.11 b/g | Applications | General Purpose |
| Accessory Type | :MiniCore RCM5600W Module | Modulation or Protocol | 802.11 b/g |
Environmental
| Operating Temperature | + 55 C | ||
Documents & Media
Similar Parts
101-1285
Rabbit Semiconductor
WiFi / 802.11 Development Tools MINICORE RCM 5600W WIRELESS DEVE. KIT DEV KIT DELUXE MINICORE RCM5600W 101-1285, Development Kit, Wi-Fi WIFI MOD, RCM5600W, 2.4GHZ, DEV KIT
101-1284
Rabbit Semiconductor
WiFi / 802.11 Development Tools RCM5600W Standard Development Kit DEV KIT STANDARD MINI RCM5600W 101-1284, Development Kit, Wi-Fi WI-FI MODULE, RCM5600W, 802.11 Rabbit Semiconductor Wi-Fi 开发套件
.JPG&w=3840&q=75)

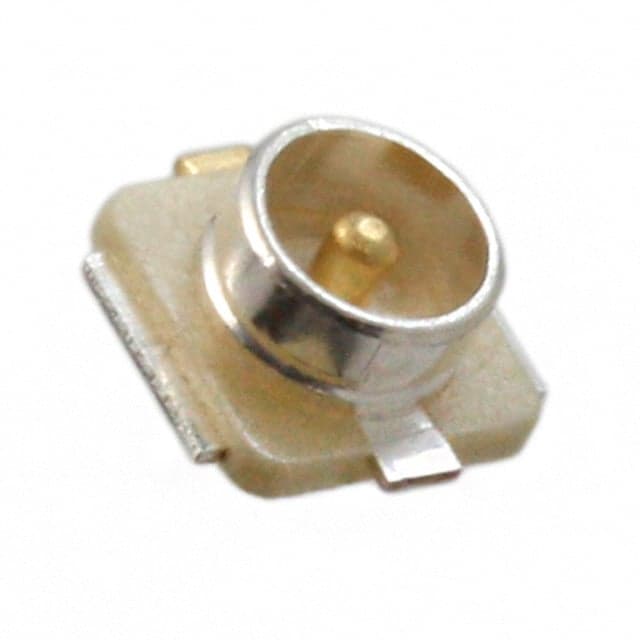

U.FL-R-SMT-1(10)
