FAD1-04010CBHW11
| Manufacturer | |
| Description | FAN 40X10MM BALL 12VDC WIRE Fans DC FAN 40x10mm Ball 12VDC WIRE Fan;DC;12V;40x40x10mm;Sq;6.2CFM;1.08W;26dBA;6000RPM;Leadwires |
| Category |
Business
| Product | Fans | Lead Time | 119 Days |
| Subcategory | Blowers and Fans | Product Category | Fans |
| Standard Package | 700 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Noise | 26 dB(A) | Speed | 6000 RPM |
| Power (Watts) | 1.08W | Power - Rated | 1.08 W |
| Voltage Rating | 12VDC | Voltage - Supply | 12 V |
| Current Rating (Max) | 0.090A | ||
Mechanical
| RPM | 6000 RPM | Size | 1.6x0.4(40x10)In.(mm) |
| Weight | 0.037 lb (16.78g) | Air Flow | 6.2 CFM (0.175m³/min) |
| Fan Type | Tubeaxial | Material | AluminumAlloy |
| Rotation | CW | Termination | 2 Wire Leads |
| Bearing Type | Ball | Static Pressure | 0.100 in H2O (24.9 Pa) |
| Housing Material | Plastic | Material - Blade | Plastic |
| Material - Frame | Plastic | Primary Material | Fans |
| Size / Dimension | Square - 40mm L x 40mm H x 10mm W | Termination Style | Wire Leads |
| Fan Accessory Type | 1.6x0.4(40x10)In.(mm) | Dimensions - Overall | 1.6x1.6x0.4In. |
Product Info
| Type | Axial Fans | Function | DC |
| Direction | ExhaustoverStruts | Switch Type | DC |
| Manufacturer | FAD1-04010Series | Configuration | Square |
Environmental
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) | Thermal Resistance @ Natural | 6.2CFM |
| Operating Temperature - Junction | 70°C | ||
Documents & Media
Similar Parts
07199-12
Qualtek
AC Power Cords 12 FAN PWR CORD POWER CORD FAN T-TYPE 12" Fan Cords & Accessories 12 FAN PWR CORD Cable Assembly Cord 0.305m 18AWG 2 POS Power RCP Fan Accessories Fan Power Cords Cord Length (mm): 305 Cord Length (in.): 12 Style: T-Type Cordage: SPT-1(18/2)
07145-24
Qualtek
AC Power Cords 24 FAN PWR CORD POWER CORD FAN 45DEG ANGLE 24" Power Cord; 24 in.; 45 deg; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.609m 18AWG 2 POS Power RCP FAN POWER CORD PowerCord;24in.;45deg;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: 45 Cordage: SPT-1(18/2)
07199-36
Qualtek
AC Power Cords 36 FAN PWR CORD POWER CORD FAN T-TYPE 36" Power Cord; 36 in.; T-Type; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 36 FAN PWR CORD Cable Assembly Cord 0.914m 18AWG 2 POS Power RCP PowerCord;36in.;T-Type;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 915 Cord Length (in.): 36 Style: T-Type Cordage: SPT-1(18/2)
07145-SP072
Qualtek
AC Power Cords 72 45 DEGREE PLUG POWER CORD W/PLUG FAN 45DEG 72" Fan Cords & Accessories 72 45 DEGREE PLUG
07199-24
Qualtek
AC Power Cords 24 FAN PWR CORD POWER CORD FAN T-TYPE 24" Fan Cord; 24 in.; T-Type; UL Listed; CSA Certified; Blunt Cut; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.609m 18AWG 2 POS Power RCP FAN POWER CORD FanCord;24in.;T-Type;ULListed,CSACertified;BluntCut;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: T-Type Cordage: SPT-1(18/2)
07199-72
Qualtek
AC Power Cords 72 FAN PWR CORD POWER CORD FAN T-TYPE 72" Fan Cords & Accessories 72 FAN PWR CORD
07145-36
Qualtek
AC Power Cords 36 FAN PWR CORD POWER CORD FAN 45DEG ANGLE 36" Power Cord; 36 in.; 45 deg; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 36 FAN PWR CORD Thrml Mgmt Access Fan Cord FAN POWER CORD PowerCord;36in.;45deg;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 915 Cord Length (in.): 36 Style: 45 Cordage: SPT-1(18/2)
07100-SP036
Qualtek
AC Power Cords 36FAN PWR CORD POWER CORD W/PLUG STRAIGHT 36" Fan Cords & Accessories 36FAN PWR CORD
07100-24
Qualtek
AC Power Cords 24 FAN PWR CORD POWER CORD FAN STRAIGHT 24" Power Cord; Fan; 2; Straight; UL Listed; CSA Certified; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.6m 2 POS Power PL FAN POWER CORD PowerCord,Fan;2;Straight;ULListed,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: Straight Cordage: SPT-1(18/2)
07190-12
Qualtek
AC Power Cords 12 FAN PWR CORD POWER CORD FAN RIGHT ANGLE 12" Power Cord; 12 in.; 90 deg; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 12 FAN PWR CORD Cable Assembly Cord 0.305m 18AWG 2 POS Power RCP PowerCord;12in.;90deg;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 305 Cord Length (in.): 12 Style: 90 Cordage: SPT-1(18/2)
07100-50
Qualtek
AC Power Cords 50 FAN PWR CORD POWER CORD FAN STRAIGHT 50" Fan Cords & Accessories 50 FAN PWR CORD Cable Assembly Cord 1.27m 18AWG 2 POS Power RCP Fan Accessories Fan Power Cords Cord Length (mm): 1270 Cord Length (in.): 50 Style: Straight Cordage: SPT-1(18/2)
QF-40-01
Qualtek
Fan Cords & Accessories 40mm FILTR MEDIA FILTER MEDIA 40MM WHITE Fan Accessories 40mm FILTR MEDIA FAN FILTER MEDIA Fan Accessories Fan Silencer and Accessories Filter Media Fan Size: 40 Material: Foam dust filter FL100 Filter Class: G2 DIN EN 779
07190-36
Qualtek
Fan Cords & Accessories 36 FAN PWR CORD POWER CORD FAN RIGHT ANGLE 36" Power Cord; Fan; 2; 90 deg; UL Listed; CSA Certified; 300 V; 7 A Fan Accessories 36 FAN PWR CORD Cable Assembly Cord 0.914m 18AWG 2 POS Power RCP FAN POWER CORD PowerCord,Fan;2;90deg;ULListed,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 915 Cord Length (in.): 36 Style: 90 Cordage: SPT-1(18/2)

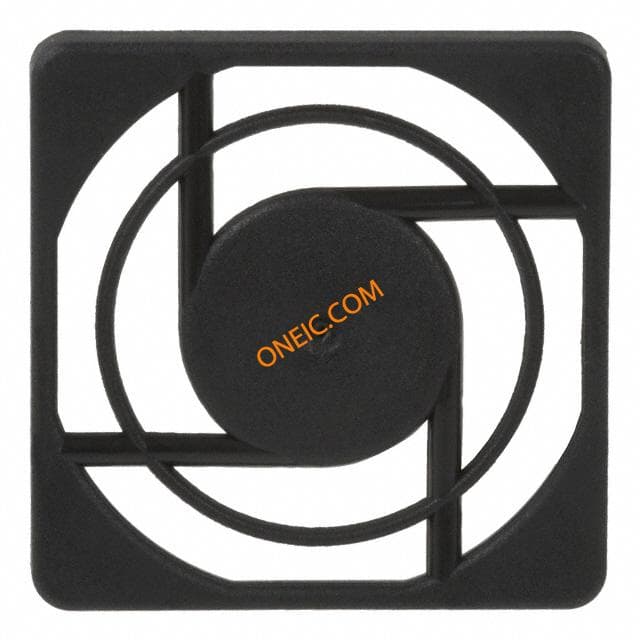

QSG-40-02
