771W-X2/02
| Manufacturer | |
| Description | ACパワーエントリモジュール SNAP-IN PCB PINS CONN RECEPT SNAP-IN/PCB PINS AC Power Entry Modules SNAP-IN PCB PINS Conn Power M 2 POS 8.6mm ST Thru-Hole Inlet,Power;SnapInMount;250VAC;2.5A;100Megohms@500VDC AC Receptacles IEC 320 Power Inlets Low Current Inlet IEC 320 - C8 Max Rating: 2.5A/250VAC Description: Snap-In Mount Terminals: PCB Mount Universal snap-in feature to fit 0.6 mm - 1.5 mm panel thickness |
| Category |
Business
| Product | Outlets | Lead Time | 98 Days |
| Other Names | Q277 | Subcategory | Connector Power |
| Product Category | AC Power Entry Modules | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | UL,CSA,VDE,SEMKO,DEMKO,NEMKOandSETI |
| Approval Agency | UL,CSA,VDE | ||
Electrical
| Current | 2.5A | Voltage | 250V |
| Filter Type | No | Voltage Rating | 250 V |
| Number of Poles | 2 | Switch Function | Not Switched |
| Dielectric Strength | 2000VACfor1min | Current Rating (Max) | 2.5 A |
| Insulation Resistance | 100Megohms@500VDC | ||
Mechanical
| Color | Black | Packaging | Bag |
| Termination | SolderTab | Mounting Type | Panel Mount, Snap-In; Through Hole, Right Angle |
| Connector Type | Receptacle, Male Pins | Mounting Style | Snap In |
| Connector Style | IEC 320-C8 | Fuseholder Type | Drawer Not Required |
| Housing Material | Thermoplastic | Primary Material | AC |
| Termination Style | Solder | Number of Contacts | 2 |
| Number of Positions | 2 | ||
Product Info
| Type | Inlet | Fused | No |
| Features | LowCurrent | Manufacturer | 771WSeries |
Documents & Media
Similar Parts
223082-01
Qualtek
AC Power Cords SPT-2 PWR CORD 125V 7A BLACK CORD 18AWG 2COND POLARIZED 6' Test Equipment Power Cords SPT-2 PWR CORD 125V 7A BLACK

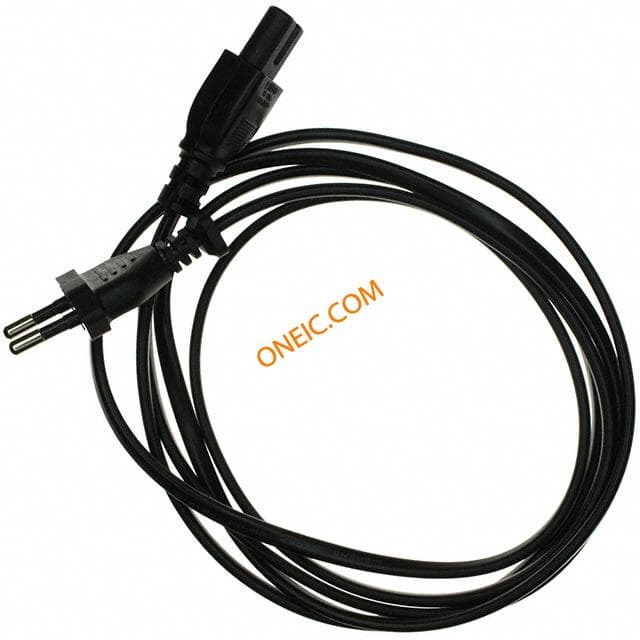

360006-E01
