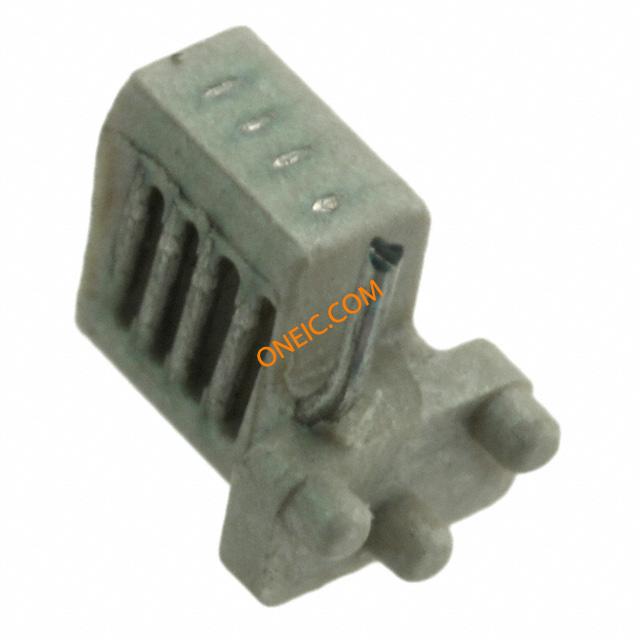

W3110
| Manufacturer | |
| Description | Antenna Helical 1.3dB Gain 1585.42MHz SMD Surface m. Helical GPS antenna ANTENNA HELICAL GPS 1.575GHZ SMD Antennas GPS Helical Antenna |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Lead Time | 84 Days |
| Unit Pack | 3000 | Other Names | 553-1680-1 |
| Subcategory | Antenna | Product Category | Antennas |
| Standard Package | Bulk | Standard Package Name | SMD |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Gain | 1.3dB | Frequency | 1575,42 MHz |
| Impedance | 50 Ohm | Antenna Type | SURFACE M. |
| Frequency - Max | 1585.42 MHz | Frequency - Min | 1565.42 MHz |
| Voltage - Supply | GPS | Frequency - Center | 1575.42 |
Mechanical
| Size | 5.0mm | Width | 2.5 mm |
| Height | 5.5 mm | Length | 5 mm |
| Packaging | REEL | Termination | Surface Mount |
| Height (Max) | 0.22" (5.5mm) | Mounting Type | Surface Mount |
| Mounting Style | PCB | Length - Overall | 5 |
| Package Quantity | SMD | Size / Dimension | 5 mm L x 2.5 mm W x 5.5 mm H |
| Termination Style | SMD/SMT | Shell Size - Insert | 5.5 |
Product Info
| Type | Helical | Matchcode | W3110 |
| Technology | Helical GPS SMD Antenna | Number of Bands | 1 |
| Standard Leadtime | 12 weeks | ||
Environmental
| Operating Temperature | 85 | Luminous Flux @ Current/Temperature | 1.3(Max) dB |
