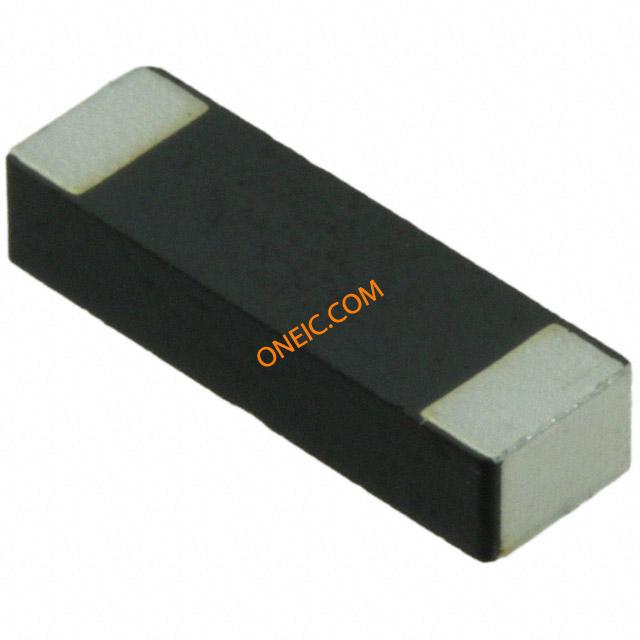

W3010
| Manufacturer | |
| Description | Antenna Ceramic 2.8dB Gain 1585.42MHz CSMD Surface m.GPS antenna 10x3,2mm ANTENNA GPS CERAMIC 1.575GHZ Antennas GPS Ceramic Antenna |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Lead Time | 84 Days |
| Unit Pack | 3000 | Other Names | 553-1670-1 |
| Subcategory | Antenna | Product Category | Antennas |
| Standard Package | Bulk | Standard Package Name | CSMD |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Gain | 2.8dBi | Frequency | 1575,42 MHz |
| Impedance | 50 Ohm | Antenna Type | CERAMIC |
| Frequency - Max | 1585.42 MHz | Frequency - Min | 1565.42 MHz |
| Voltage - Supply | GPS | Frequency - Center | 1575.42 |
Mechanical
| Size | 10mm | Width | 3.2 mm |
| Height | 2 mm | Length | 10 mm |
| Packaging | REEL | Termination | Surface Mount |
| Height (Max) | 0.07" (2.0mm) | Mounting Type | Surface Mount |
| Mounting Style | PCB | Length - Overall | 10 |
| Package Quantity | CSMD | Size / Dimension | 10 mm L x 3.2 mm W x 2 mm H |
| Termination Style | SMD/SMT | Shell Size - Insert | 2 |
Product Info
| Type | Ceramic | Matchcode | W3010 |
| Technology | GPS Ceramic Chip Antenna | Number of Bands | 1 |
| Standard Leadtime | 12 weeks | ||
Environmental
| Operating Temperature | 85 | Luminous Flux @ Current/Temperature | 2.8(Max) dB |
