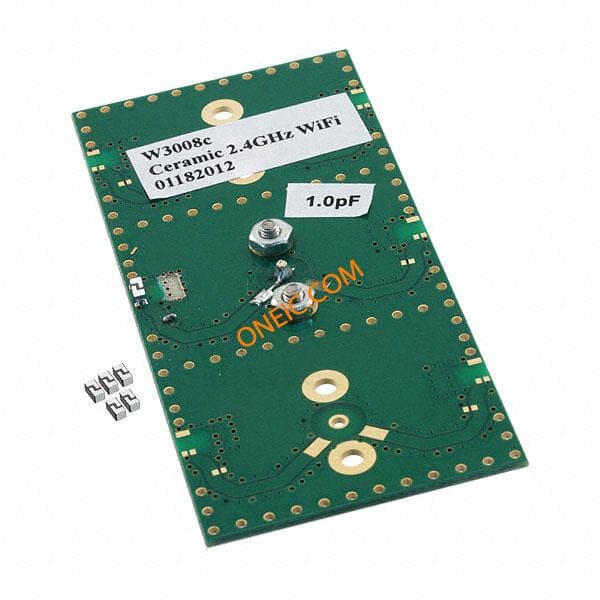

W3008C
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Lead Time | 20 Days |
| Unit Pack | 3000 | Other Names | 553-1674-1 |
| Subcategory | RF ICs Misc | Product Category | Antennas |
| Standard Package | Bulk | Standard Package Name | SMD |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Gain | 1.7dB | Frequency | 2,45 GHz |
| Impedance | 50Ohm | Antenna Type | CERAMIC |
| Frequency Range | 2400 MHz to 2483.5 MHz | Voltage - Supply | BLUE/WLAN |
Mechanical
| Size | 3.2mm | Width | 1.6 mm |
| Height | 1.1 mm | Length | 3.2 mm |
| Packaging | REEL | Termination | Surface Mount |
| Height (Max) | 0.04" (1.1mm) | Mounting Type | Surface Mount |
| Mounting Style | PCB | Package / Case | 3SMD |
| Length - Overall | 3.2 | Package Quantity | SMD |
| Size / Dimension | 3.2 mm L x 1.6 mm W x 1.1 mm H | Termination Style | SMD/SMT |
| Number of Positions | 3 | Shell Size - Insert | 1.1 |
Product Info
| Matchcode | W3008C | Technology | Bluetooth, WLAN, WiFi Ceramic Chip Antenna |
| Number of Bands | 1 | Standard Leadtime | 12 weeks |
| Printed Circuit Board | 3 | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
Sourcing & traceability
- Datasheet
- W3008_W3008C.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
