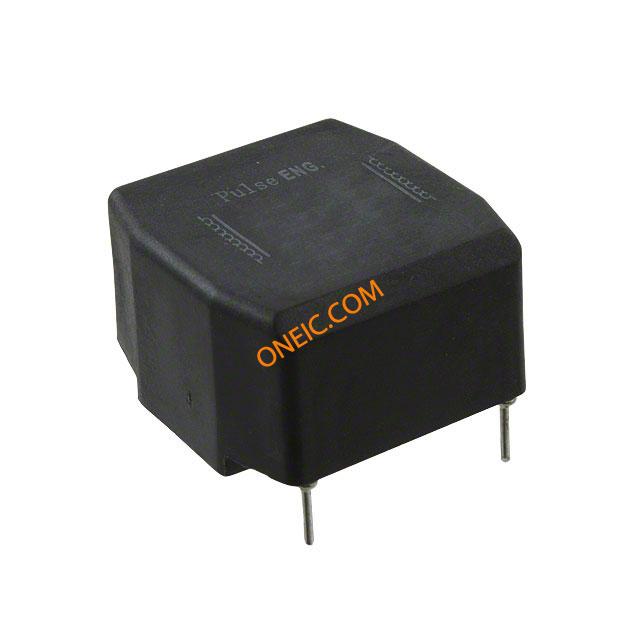

PE-96181NL
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chokes | Lead Time | 84 Days |
| Subcategory | Common Mode Chokes | Product Category | Common Mode Filters / Chokes |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 5A | Tolerance | 30 % |
| Inductance | 3.9 mH | Filter Type | Power Line |
| DC Resistance (DCR) | 60 mOhm Max | Current Rating (Max) | 5 A |
| Frequency - Self Resonant | 500 kHz | Resistance - Initial (Ri) (Min) | 60 mOhm |
Mechanical
| Depth | 18.29 mm | Width | 18.29 mm |
| Height | 34.04 mm | Packaging | Bulk |
| Lead Style | Pin | Height (Max) | 1.350" (34.29mm) |
| Mounting Type | Through Hole | Package / Case | 34.04 mm |
| Length - Overall | 33 mm | Size / Dimension | 18.29 mm W x 33 mm L x 34.04 mm H |
| Termination Style | Radial | ||
Product Info
| Type | Common Mode | Number of Lines | 2 |
| For Use With/Related Products | PE-96181 | ||
Environmental
| Operating Temperature | -40 to 130 °C | ||
Documents & Media
PDF Document
Online Document
Sourcing & traceability
- Datasheet
- P593.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
