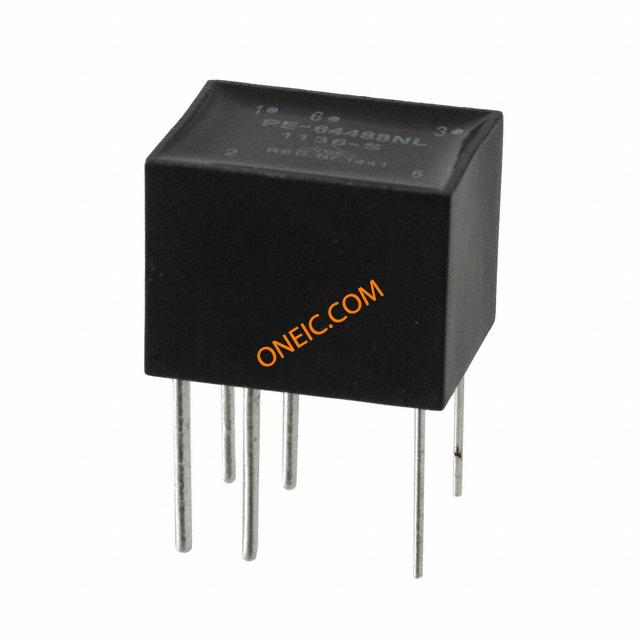

PE-64488NL
| Manufacturer | |
| Description | Current Transformer 1:200 Through Hole Current Transformer 1:200 7Term. PC Pin Thru-Hole XFRMR CURR SENSE 80.0MH T/H Current Transformer Sensors TRANSFORMER |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 84 Days | Subcategory | Current Transformer |
| Product Category | Current Transformer Sensors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 20 to 200 KHz | Inductance | 80000 uH |
| DC Resistance (DCR) | 200 Ohm Primary, 4.5 Ohm Secondary | Current Rating (Max) | 20A |
| Turns Ratio - Primary:Secondary | 1:200 | ||
Mechanical
| Size | 22.86mm L x 17.78mm W | Depth | 17.78 mm |
| Height | 17.78 mm | Packaging | Bulk |
| Lead Style | PC Pin | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Length - Overall | 22.86 mm |
| Transformer Type | Current Sense Transformer | Termination Style | PC Pin |
| Number of Contacts | 7 | Number of Positions | 7 |
| Maximum Working Height | 17.78mm | ||
Product Info
| Series | THT | Output Configuration | Through Hole |
| For Use With/Related Products | PE-64488 | ||
Environmental
| Operating Temperature | -40C to 130C | ||
