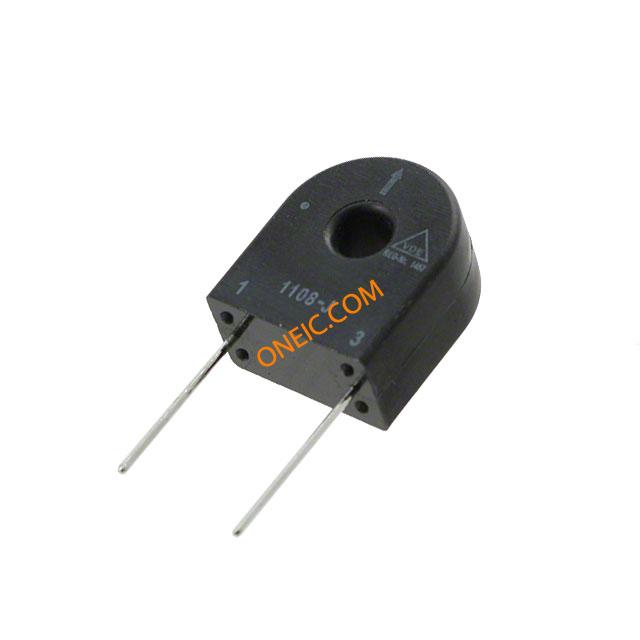

PE-51686NL
| Manufacturer | |
| Description | Ind Current Sense 5mH 15.75KHz 20A RDL Fixed Inductors 5K UH 20A Inductor Current Sense Wirewound 5mH 15.75KHz 20A 700mOhm DCR RDL PE-51 THT CST 1:50 INDUCTOR CURR SENSE 5.0MH T/H |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 960 | Product | Inductor |
| Unit Pack | 60 | Product Category | Fixed Inductors |
| Standard Package | Bulk | Factory Pack Quantity | 60 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Military Standard | Not Required |
Electrical
| Impedance | Not Required ohm | Inductance | 5 mH |
| Test Frequency | 15.75 kHz | Frequency Range | 200000Hz |
| Current - Output | 20000mA | DC Resistance (DCR) | 0.7 ohm |
| Current Rating (Max) | 20 A | Current - DC Forward (If) (Max) | 20000 mA |
| Resistance - Initial (Ri) (Min) | 700 mOhm | Turns Ratio - Primary:Secondary | 1:50 |
Mechanical
| Depth | 9.91 mm | Width | 9.9 mm |
| Height | 20.32 mm | Length | 17.01mm |
| Diameter | Not Required mm | Packaging | Bulk |
| Lead Style | Radial | Lead Spacing | 12.7 mm |
| Pitch - Post | 12.7 | Hole Diameter | 4.3mm |
| Mounting Type | THT | Package / Case | 20.32 mm |
| Length - Overall | 17.01 mm | Size / Dimension | 9.9 mm W x 17.01 mm L x 20.32 mm H |
| Termination Style | Radial | Supplier Device Package | CASE HOLE |
Product Info
| Type | Current Sense | Series | PE-51 |
| Matchcode | INDCSTPE-51686 | Technology | Wirewound |
| Failure Rate | Not Required | Standard Leadtime | 12 weeks |
Environmental
| Temperature - Test | -40°C | Operating Temperature | -40 to 130 °C |
