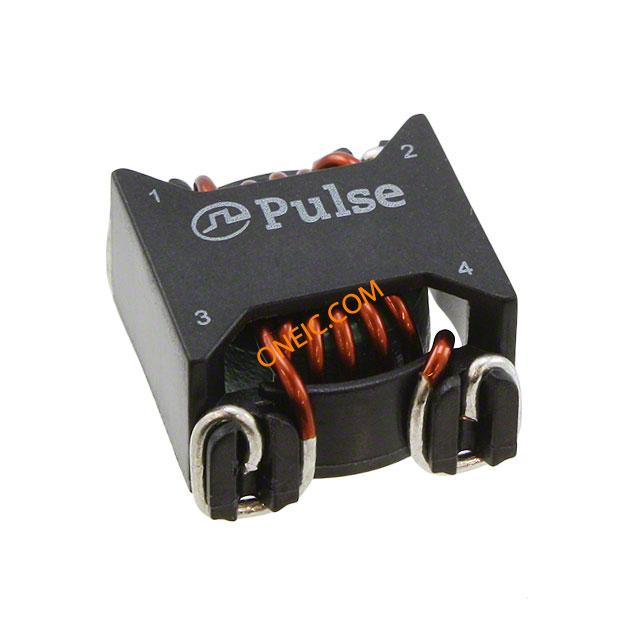

PA2755NL
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 84 Days | Subcategory | Common Mode Chokes |
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current | 14A | Inductance | 117µH |
| Filter Type | Power Line | DC Resistance (DCR) | 1.95 mOhm Max |
| Current - DC Forward (If) (Max) | 14000 mA | Turns Ratio - Primary:Secondary | 1:1 |
Mechanical
| Depth | 20.7 mm | Height | 11.2 mm |
| Packaging | Tube | Height (Max) | 0.440" (11.18mm) |
| Mounting Type | Surface Mount | Package / Case | Horizontal, 4 PC Pad |
| Length - Overall | 19.1 mm | Size / Dimension | 0.750" L x 0.815" W (19.05mm x 20.70mm) |
Product Info
| Type | Power Line | Number of Lines | 2 |
Environmental
| Operating Temperature | -40 to 130 °C | ||
Sourcing & traceability
- Datasheet
- P688.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
