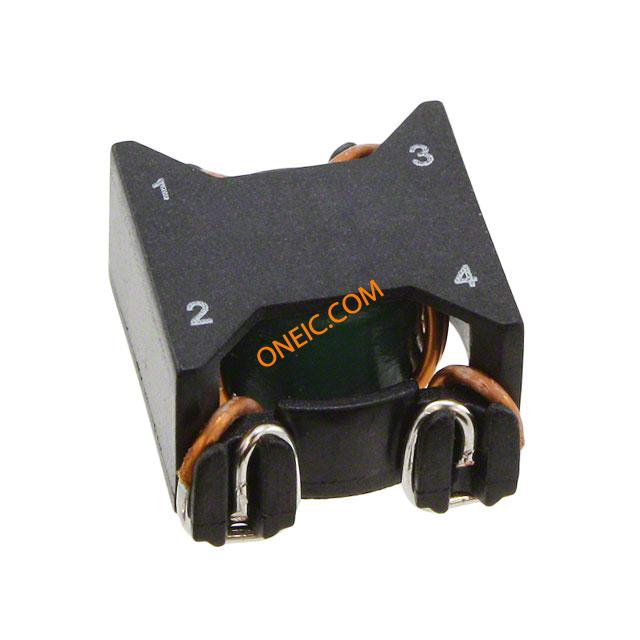

PA2750NL
| Manufacturer | |
| Description | Transformer Misc CHOKE COMM MODE 400UH 6A SMD Common Mode Chokes Dual 400uH 6A 9.4mOhm DCR SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 84 Days | Subcategory | Common Mode Chokes |
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current | 6A | Inductance | 400µH |
| Filter Type | Power Line | DC Resistance (DCR) | 9.4 mOhm Max |
| Current - DC Forward (If) (Max) | 6000 mA | Turns Ratio - Primary:Secondary | 1:1 |
Mechanical
| Depth | 18.16 mm | Height | 9.91 mm |
| Packaging | Tube | Height (Max) | 0.390" (9.91mm) |
| Mounting Type | Surface Mount | Package / Case | Horizontal, 4 PC Pad |
| Length - Overall | 14.99 mm | Size / Dimension | 0.590" L x 0.715" W (14.99mm x 18.16mm) |
Product Info
| Type | Power Line | Number of Lines | 2 |
Environmental
| Operating Temperature | -40 to 130 °C | ||
