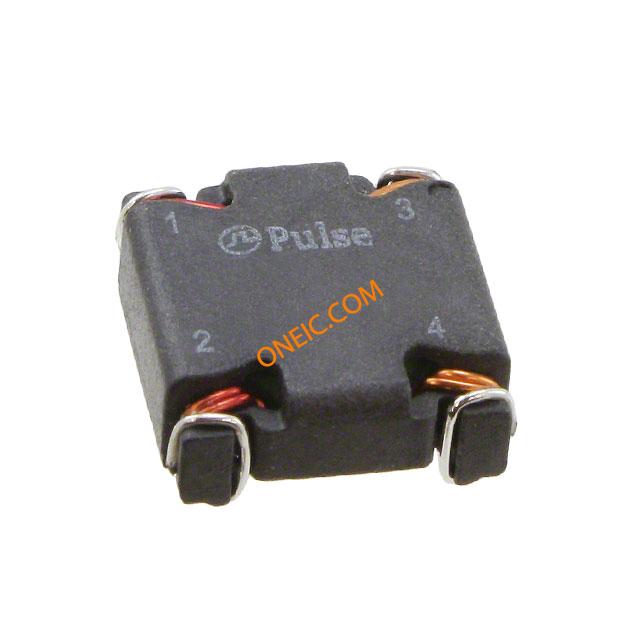

PA2744NL
| Manufacturer | |
| Description | Transformer Misc CHOKE COMM MODE 280UH 4A SMD Common Mode Chokes Dual 280uH 4A 13.2mOhm DCR SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 84 Days | Subcategory | Common Mode Chokes |
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current | 4A | Inductance | 280µH |
| Filter Type | Power Line | DC Resistance (DCR) | 13.2 mOhm Max |
| Current - DC Forward (If) (Max) | 4000 mA | Turns Ratio - Primary:Secondary | 1:1 |
Mechanical
| Depth | 12.7 mm | Height | 5.6 mm |
| Packaging | Tube | Height (Max) | 0.220" (5.60mm) |
| Mounting Type | Surface Mount | Package / Case | Horizontal, 4 PC Pad |
| Length - Overall | 12.7 mm | Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
Product Info
| Type | Power Line | Number of Lines | 2 |
Environmental
| Operating Temperature | -40 to 130 °C | ||
