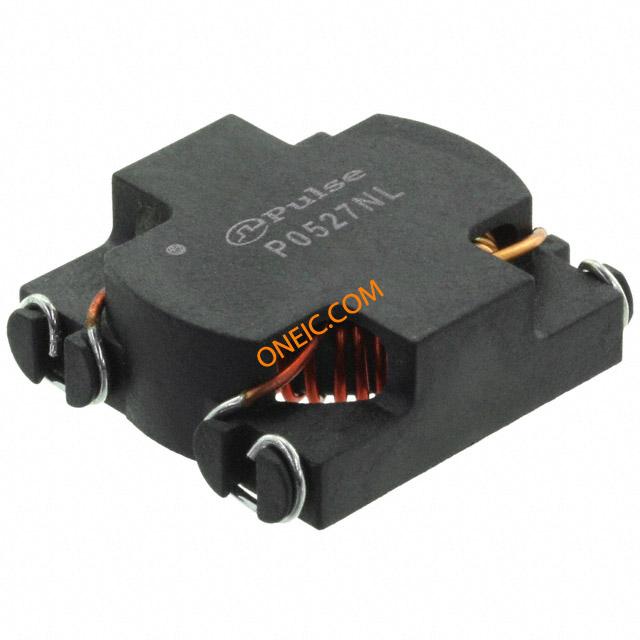

P0527NLT
| Manufacturer | |
| Description | Ind Common Mode Choke 530uH 35% 7.2A T/R Common Mode Filters / Chokes CMI SMT NL Common Mode Chokes Dual 530uH 7.2A 15mOhm DCR SMD T/R CHOKE COM MODE 0.53MH 7.20A SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chokes | Lead Time | 84 Days |
| Other Names | 553-2072-1 | Subcategory | Common Mode Chokes |
| Product Category | Common Mode Filters / Chokes | Standard Package | Tape & Reel |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Current | 7.2A | Impedance | Not Required ohm |
| Tolerance | 35 % | Inductance | 530 uH |
| Filter Type | Power Line | DC Resistance (DCR) | 15 mOhm Max |
| Voltage - Breakdown | 1kVrms | Current Rating (Max) | 7.2 A |
| Current - DC Forward (If) (Max) | 7200 mA | Resistance - Initial (Ri) (Min) | 15 mOhm |
Mechanical
| Size | 1.110" L x 1.000" W (28.19mm x 25.40mm) | Depth | 25.4 mm |
| Width | 25.4 mm | Height | 10.03 mm |
| Diameter | Not Required mm | Packaging | Bulk |
| Shielding | Unshielded | Height (Max) | 0.395" (10.04mm) |
| Mounting Type | Surface Mount | Package / Case | 28.19 X 25.4 X 10.03 |
| Length - Overall | 28.19 mm | Size / Dimension | 25.4 mm W x 28.19 mm L x 10.03 mm H |
| Termination Style | SMD/SMT | Number of Cores/Bus Width | 2 |
Product Info
| Type | Common Mode Choke | Failure Rate | Not Required |
| Configuration | Dual | Number of Lines | 2 |
| For Use With/Related Products | P0527P0527T | ||
Environmental
| Operating Temperature | - 40 C to + 120 C | ||
