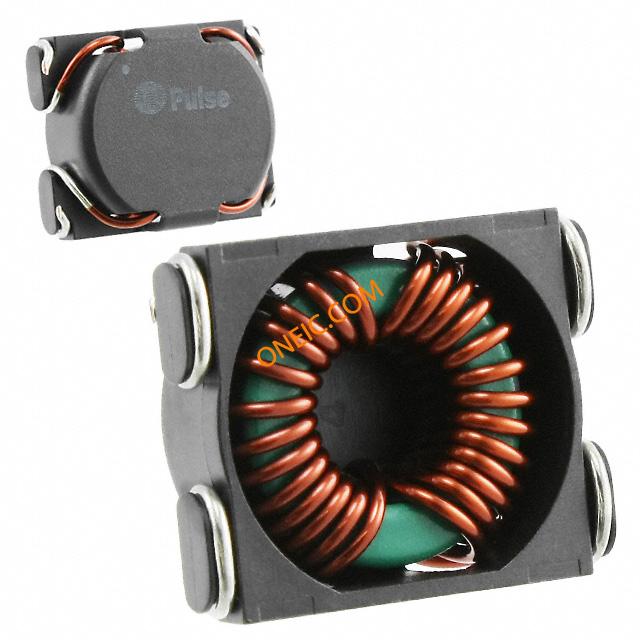

P0502NLT
| Manufacturer | |
| Description | Ind Common Mode Choke 470uH 35% 14A T/R Common Mode Filters / Chokes CMI SMT NL Common Mode Chokes Dual 470uH 14A 8mOhm DCR SMD T/R P0502 2X470uH 14000mA 35% CHOKE COM MODE 0.47MH 14.0A SMD Inductor common mode 470uH 14A INDUCTOR, 470UH, SMT, 14A, 12.7X27.9MM Pulse PO-xxx 系列 绕线贴片电感器, 470 μH ±35%, 14A Idc |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 75 | Product | Chokes |
| Lead Time | 84 Days | Unit Pack | 75 |
| Other Names | 553-1939-1 | Subcategory | Common Mode Chokes |
| Product Category | Common Mode Filters / Chokes | Standard Package | Tape & Reel |
| Factory Pack Quantity | 75 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045095 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Military Standard | Not Required |
Electrical
| Current | 14A | Impedance | Not Required ohm |
| Tolerance | 35 % | Inductance | 470 uH |
| Filter Type | Power Line | Range deg/s | :- |
| Current - Output | 14000mA | Inductance Range | :± 35% |
| Current Rating - DC | :14A | DC Resistance (DCR) | 0.008Ohm |
| Voltage - Breakdown | 1kVrms | Current Rating (Max) | 14 A |
| DC Resistance (DCR) (Max) | :0.008ohm | Current - DC Forward (If) (Max) | 14000 mA |
| Resistance - Initial (Ri) (Min) | 8 mOhm | ||
Mechanical
| Depth | 25.4 mm | Width | 25.4 mm |
| Height | 12.7 mm | Length | 30.99mm |
| Weight | 14.8g | Diameter | Not Required mm |
| Packaging | Reel | Shielding | Unshielded |
| Height (Max) | 0.500" (12.70mm) | Core Material | :- |
| Mounting Type | Surface Mount | Number of Pins | :4 |
| Package / Case | 30.99 X 25.4 X 12.7 | Length - Overall | 30.99 mm |
| Size / Dimension | 25.4 mm W x 27.94 mm L x 12.7 mm H | Termination Style | SMD/SMT |
| Dimensions - Overall | :30.99mm x 25.4mm x 12.7mm | ||
Product Info
| Type | Common Mode Choke | Matchcode | INDK2X470U |
| Technology | COMMONMODE | Failure Rate | Not Required |
| Configuration | Dual | Number of Lines | 2 |
| Standard Leadtime | 13 weeks | For Use With/Related Products | P0502TP0502 |
Environmental
| Temperature - Test | -40°C | Operating Temperature | - 40 C to + 120 C |
