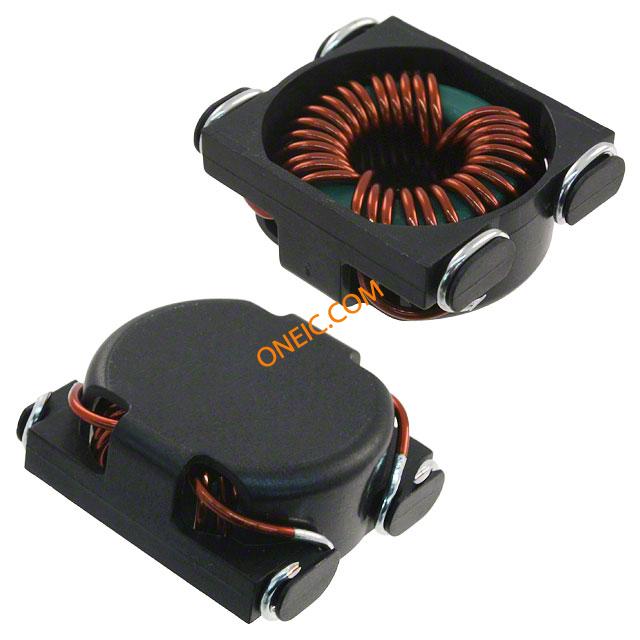

P0469NL
| Manufacturer | |
| Description | Ind Common Mode Choke 630uH 35% 11.6A Tube Common Mode Filters / Chokes 0.63mH 11.6A Common Mode Chokes Dual 630uH 11.6A 10mOhm DCR SMD Tube CHOKE COM MODE 0.63MH 11.6A SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chokes | Lead Time | 84 Days |
| Subcategory | Common Mode Chokes | Product Category | Common Mode Filters / Chokes |
| Standard Package | Bulk | Factory Pack Quantity | 20 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 11.6A | Tolerance | 35 % |
| Inductance | 630 uH | Filter Type | Power Line |
| DC Resistance (DCR) | 10 mOhm Max | Voltage - Breakdown | 1kVrms |
| Current Rating (Max) | 11.6 A | Resistance - Initial (Ri) (Min) | 10 mOhm |
Mechanical
| Size | 1.220" L x 1.000" W (30.99mm x 25.40mm) | Depth | 25.4 mm |
| Width | 25.4 mm | Height | 12.7 mm |
| Packaging | Tube | Shielding | Unshielded |
| Height (Max) | 0.500" (12.70mm) | Mounting Type | Surface Mount |
| Package / Case | 30.99 X 25.4 X 12.7 | Length - Overall | 30.99 |
| Size / Dimension | 25.4 mm W x 27.94 mm L x 12.7 mm H | Termination Style | SMD/SMT |
| Number of Cores/Bus Width | 2 | ||
Product Info
| Type | Common Mode Choke | Configuration | Dual |
| Number of Lines | 2 | For Use With/Related Products | P0469P0469T |
Environmental
| Operating Temperature | - 40 C to + 120 C | ||
