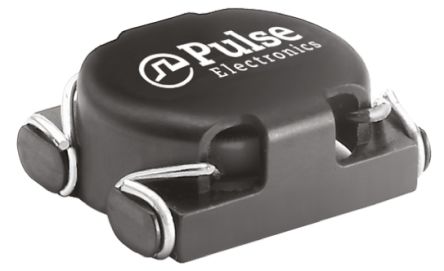

P0429NLT
| Manufacturer | |
| Description | Ind Common Mode Choke 810uH 35% 9.7A T/R Common Mode Filters / Chokes CMI SMT NL Common Mode Chokes Dual 810uH 9.7A 14mOhm DCR SMD T/R CHOKE COM MODE 0.81MH 9.70A SMD Inductor common mode 810uH 9.7A INDUCTOR, 810UH, SMT, 9.7A, 12.7X27.9MM Pulse PO-xxx 系列 绕线贴片电感器, 810 μH ±35%, 9.7A Idc P0429 2x810uH 9700mA 20% |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chokes | Lead Time | 84 Days |
| Other Names | 553-1937-1 | Subcategory | Common Mode Chokes |
| Product Category | Common Mode Filters / Chokes | Standard Package | Tape & Reel |
| Factory Pack Quantity | 75 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045095 |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Current | 9.7A | Impedance | Not Required ohm |
| Tolerance | 35 % | Inductance | 810 uH |
| Filter Type | Power Line | Range deg/s | :- |
| Inductance Range | :± 35% | Current Rating - DC | :9.7A |
| DC Resistance (DCR) | 14 mOhm Max | Voltage - Breakdown | 1kVrms |
| Current Rating (Max) | 9.7 A | DC Resistance (DCR) (Max) | :0.014ohm |
| Current - DC Forward (If) (Max) | 9700 mA | Resistance - Initial (Ri) (Min) | 14 mOhm |
Mechanical
| Depth | 25.4 mm | Width | 25.4 mm |
| Height | 12.7 mm | Length | 27.94mm |
| Weight | 0.001134 | Diameter | Not Required mm |
| Packaging | Reel | Shielding | Unshielded |
| Height (Max) | 0.500" (12.70mm) | Core Material | :- |
| Mounting Type | Surface Mount | Number of Pins | :4 |
| Package / Case | 30.99 X 25.4 X 12.7 | Length - Overall | 30.99 mm |
| Size / Dimension | 25.4 mm W x 27.94 mm L x 12.7 mm H | Termination Style | SMD/SMT |
| Dimensions - Overall | :30.99mm x 25.4mm x 12.7mm | ||
Product Info
| Type | Common Mode Choke | Failure Rate | Not Required |
| Configuration | Dual | Number of Lines | 2 |
| For Use With/Related Products | P0429P0429T | ||
Environmental
| Operating Temperature | - 40 C to + 120 C | ||
