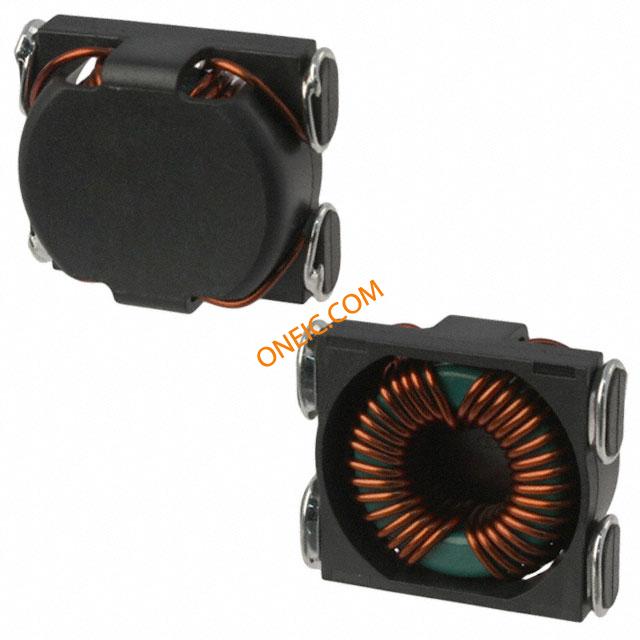

P0429NL
| Manufacturer | |
| Description | Ind Common Mode Choke 810uH 35% 9.7A Tube Common Mode Filters / Chokes CMI SMT NL Common Mode Chokes Dual 810uH 9.7A 14mOhm DCR SMD Tube CHOKE COM MODE 0.81MH 9.70A SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chokes | Lead Time | 62 Days |
| Other Names | P0429NL-ND | Subcategory | Common Mode Chokes |
| Product Category | Common Mode Filters / Chokes | Standard Package | Bulk |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Current | 9.7A | Impedance | Not Required ohm |
| Tolerance | 35 % | Inductance | 810 uH |
| Filter Type | Power Line | DC Resistance (DCR) | 14 mOhm Max |
| Voltage - Breakdown | 1kVrms | Current Rating (Max) | 9.7 A |
| Current - DC Forward (If) (Max) | 9700 mA | Resistance - Initial (Ri) (Min) | 14 mOhm |
Mechanical
| Depth | 25.4 mm | Width | 25.4 mm |
| Height | 12.7 mm | Diameter | Not Required mm |
| Packaging | Bulk | Shielding | Unshielded |
| Height (Max) | 0.500" (12.70mm) | Mounting Type | Surface Mount |
| Package / Case | 30.99 X 25.4 X 12.7 | Length - Overall | 30.99 mm |
| Size / Dimension | 25.4 mm W x 27.94 mm L x 12.7 mm H | Termination Style | SMD/SMT |
Product Info
| Type | Common Mode Choke | DELETED | Compliant |
| Failure Rate | Not Required | Configuration | Dual |
| Number of Lines | 2 | For Use With/Related Products | P0429P0429T |
Environmental
| Operating Temperature | - 40 C to + 120 C | ||
