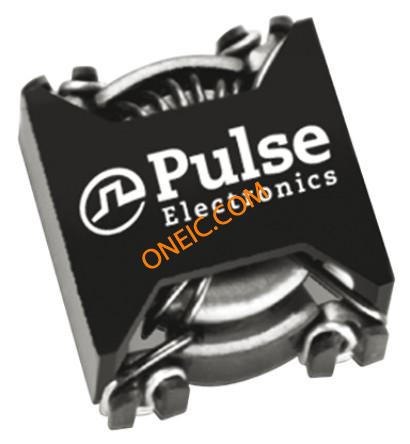

P0422NLT
| Manufacturer | |
| Description | Ind Common Mode Choke 770uH 35% 4.7A T/R Common Mode Filters / Chokes 0.77mH 4.7A Common Mode Chokes Dual 770uH 4.7A 40mOhm DCR SMD T/R CHOKE COM MODE 0.77MH 4.70A SMD Inductor common mode 770uH 4.7A INDUCTOR, 770UH, SMT, 4.7A, 9.9X19.6MM Pulse PO-xxx 系列 绕线贴片电感器, 770 μH ±35%, 4.7A Idc |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chokes | Lead Time | 71 Days |
| Other Names | 553-1767-1 | Subcategory | Common Mode Chokes |
| Product Category | Common Mode Filters / Chokes | Standard Package | Tape & Reel |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045095 |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Current | 4.7A | Impedance | Not Required ohm |
| Tolerance | 35 % | Inductance | 770 uH |
| Filter Type | Power Line | Range deg/s | :- |
| Inductance Range | :± 35% | Current Rating - DC | :4.7A |
| DC Resistance (DCR) | 40 mOhm Max | Voltage - Breakdown | 1kVrms |
| Current Rating (Max) | 4.7 A | DC Resistance (DCR) (Max) | :0.04ohm |
| Current - DC Forward (If) (Max) | 4700 mA | Resistance - Initial (Ri) (Min) | 40 mOhm |
Mechanical
| Depth | 17.02 mm | Width | 17.02 mm |
| Height | 9.91 mm | Length | 17.02mm |
| Weight | 0.000966 | Diameter | Not Required mm |
| Packaging | Reel | Shielding | Unshielded |
| Height (Max) | 0.390" (9.91mm) | Core Material | :- |
| Mounting Type | Surface Mount | Number of Pins | :4 |
| Package / Case | 19.56 X 17.02 X 9.91 | Length - Overall | 19.56 mm |
| Size / Dimension | 17.02 mm W x 19.56 mm L x 9.91 mm H | Termination Style | SMD/SMT |
| Dimensions - Overall | :19.56mm x 17.02mm x 9.91mm | ||
Product Info
| Type | Common Mode Choke | Failure Rate | Not Required |
| Configuration | Dual | Number of Lines | 2 |
| For Use With/Related Products | P0422P0422T | ||
Environmental
| Operating Temperature | - 40 C to + 120 C | ||
