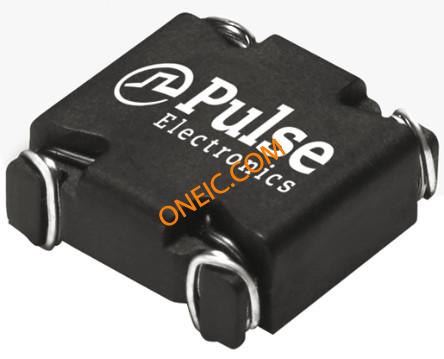

P0354NLT
| Manufacturer | |
| Description | Ind Common Mode Choke 1.17mH 35% 1.22A T/R Common Mode Filters / Chokes CMI SMT NL Common Mode Chokes Dual 1.17mH 1.22A 200mOhm DCR SMD T/R CHOKE COM MODE 1.17MH 1.22A SMD Inductor common mode 1.17mH 1.22A INDUCTOR, 1170UH, SMT, 1.22A, 5.5X12.7MM Pulse PO-xxx 系列 绕线贴片电感器, 1.17 mH ±35%, 1.22A Idc P0354 2X1170uH 1220mA |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chokes | Lead Time | 34 Days |
| Other Names | 553-1765-1 | Subcategory | Common Mode Chokes |
| Product Category | Common Mode Filters / Chokes | Standard Package | Tape & Reel |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045095 |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Current | 1.22A | Impedance | Not Required ohm |
| Tolerance | 35 % | Inductance | 1.17 mH |
| Filter Type | Power Line | Range deg/s | :- |
| Inductance Range | :± 35% | Current Rating - DC | :1.22A |
| DC Resistance (DCR) | 200 mOhm Max | Voltage - Breakdown | 1kVrms |
| Current Rating (Max) | 1.22 A | DC Resistance (DCR) (Max) | :0.2ohm |
| Current - DC Forward (If) (Max) | 1220 mA | Resistance - Initial (Ri) (Min) | 200 mOhm |
Mechanical
| Depth | 12.7mm | Width | 12.7 mm |
| Height | 5.46 mm | Length | 12.7mm |
| Weight | 0.000685 | Diameter | Not Required mm |
| Packaging | Reel | Shielding | Unshielded |
| Height (Max) | 0.215" (5.46mm) | Core Material | :- |
| Mounting Type | Surface Mount | Number of Pins | :4 |
| Package / Case | 12.7 X 12.7 X 5.46 | Length - Overall | 12.7 mm |
| Size / Dimension | 12.7 mm W x 12.7 mm L x 5.46 mm H | Termination Style | SMD/SMT |
| Dimensions - Overall | :12.7mm x 12.7mm x 5.46mm | ||
Product Info
| Type | Common Mode Choke | Failure Rate | Not Required |
| Configuration | Dual | Number of Lines | 2 |
| For Use With/Related Products | P0354P0354T | ||
Environmental
| Operating Temperature | - 40 C to + 120 C | ||
