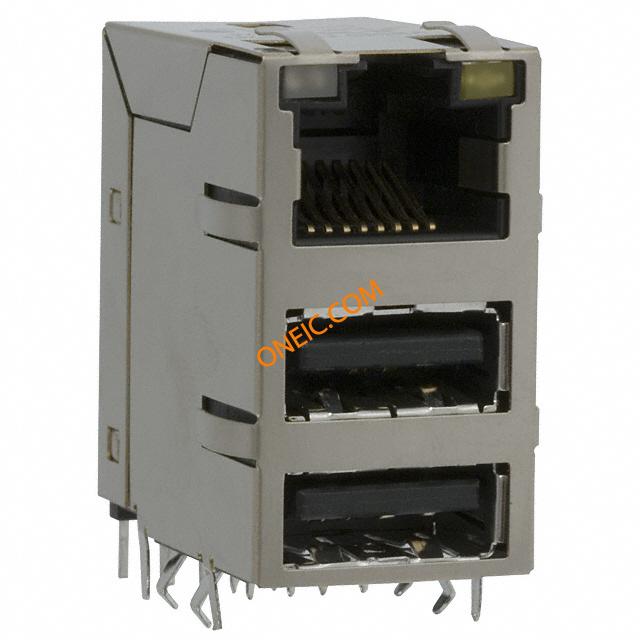

JY0-0016NL
| Manufacturer | |
| Description | Conn RJ-45/Dual USB F/F/F 6/4/4 POS Solder RA Thru-Hole 18 Terminal 3 Port Tray USB Connectors USB/RJ45 COMBO THRU- HOLE CONN MAGJACK 3PORT 100 BASE-TX RJ-45 JY0 2xUSB 1xRJ-45 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | USB Type A Connectors | Lead Time | 84 Days |
| Subcategory | Connector Interface | Standard Package | Trays |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage - Supply | USB | ||
Mechanical
| Depth | 26.09 mm | Height | 31.12 mm |
| LED Color | Green, Orange - Yellow | Packaging | Tray |
| Shielding | Shielded, EMI Finger | Orientation | 90° Angle (Right) |
| Termination | Solder | Mounting Type | Through Hole |
| Tab Direction | Up | Connector Type | USB Type A/RJ45 combo stack |
| Contact Finish | Gold | Mounting Style | Through Hole |
| Number of Rows | 3 | Shield Material | Brass |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 19.08 mm | Height Above Board | 1.170" (29.72mm) |
| Number of Contacts | 6/4/4 | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | RJ-45/Dual USB | Gender | F/F/F |
| DELETED | Compliant | Features | Board Lock |
| Applications | 10/100 Base-TX | Number of Ports | 3 |
| Number of Cores per Jack | 5 | For Use With/Related Products | JY0-0016 |
Environmental
| Mechanical Life | Obsolete | Operating Temperature | 0°C ~ 70°C |
| Operating Temperature - Junction | 70C | ||
